Multi-Pin Control Module Connector (68-Pin Connector) -J217- (Sockets on VAG 1598/18)



Multi-pin control module connector (68-pin connector) -J217- (sockets on VAG 1598/18), 09A, 5 Spd. A/T

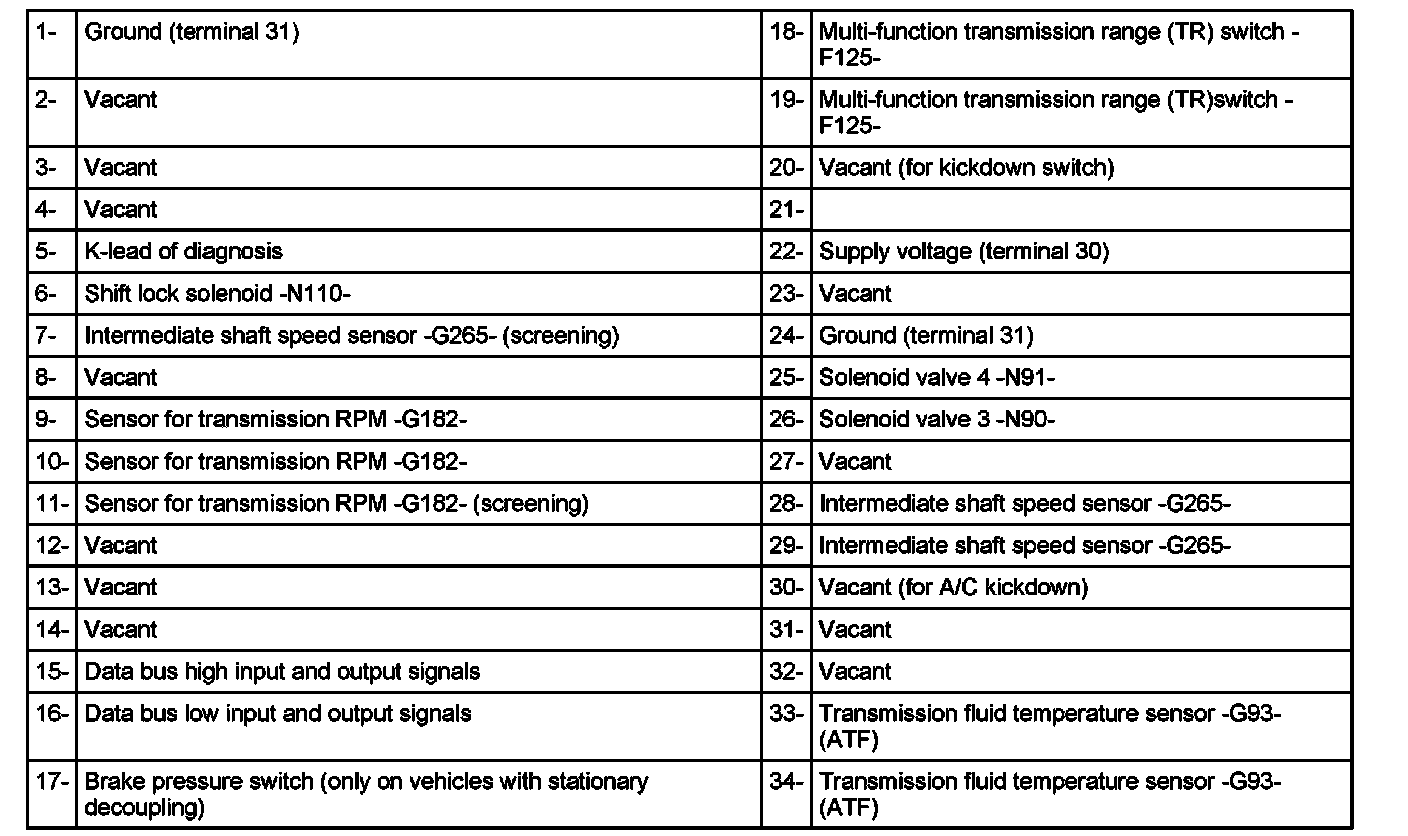

sockets on VAG 1598/18:

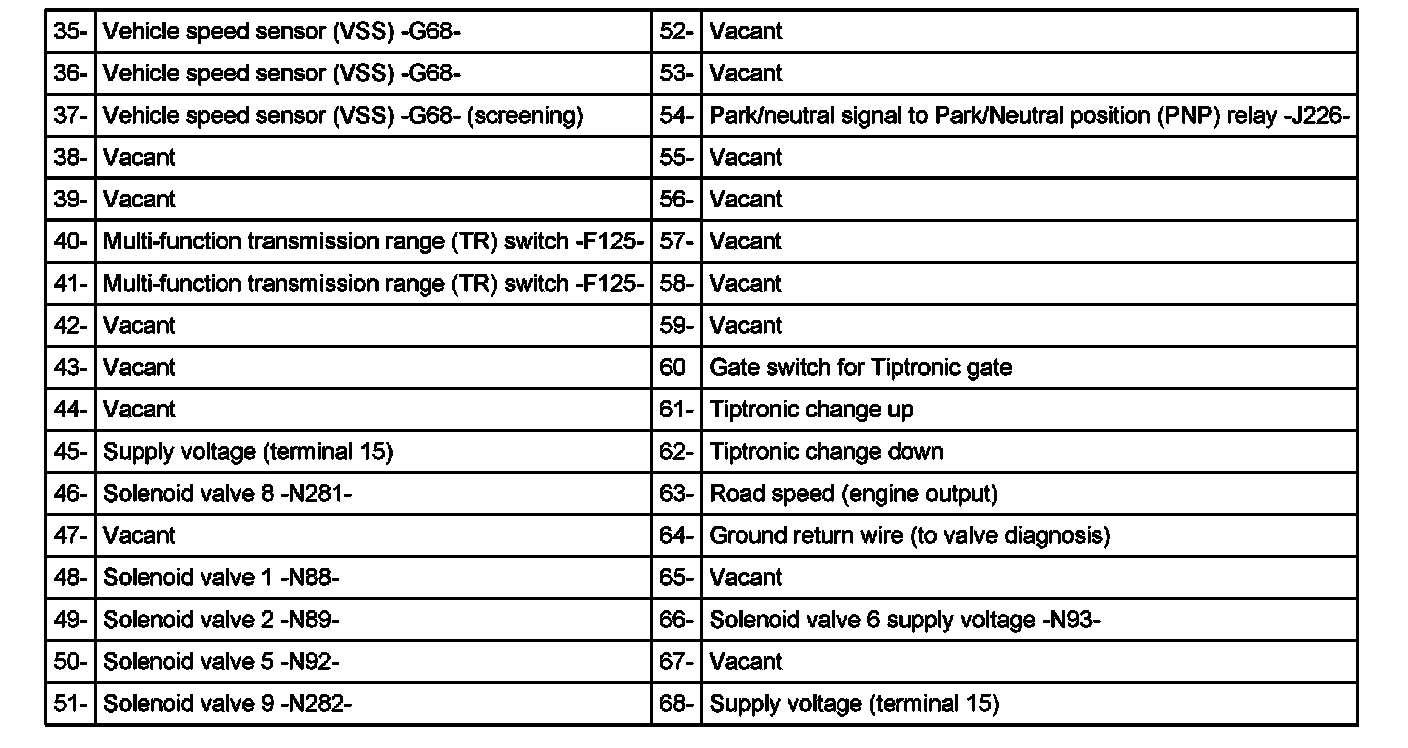

sockets on VAG 1598/18:
