Left Rear Level Control System Sensor G76 on Rear Axle For All Wheel Drive

Left rear level control system sensor G76 on rear axle for all wheel drive
General notes go to Level control system sensor in vehicles with automatic headlight range control - general information

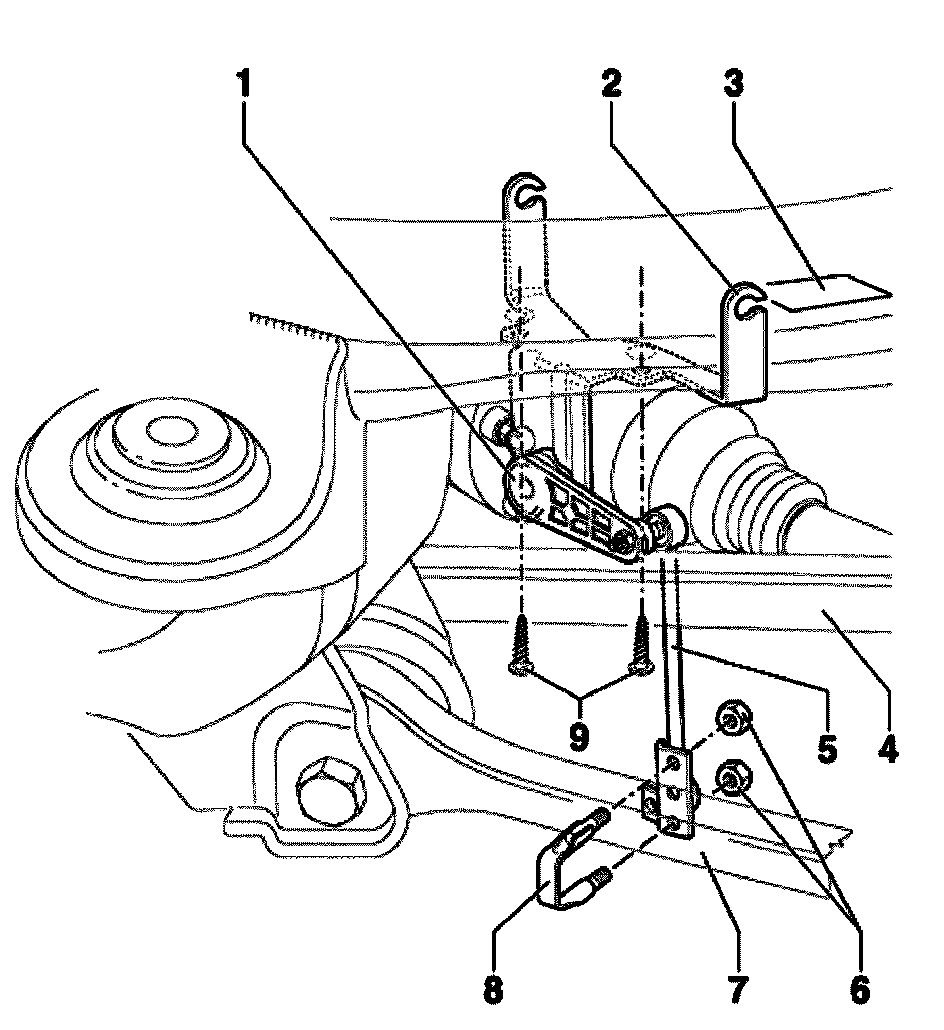

1 - Level control system sensor G76
^ Check electrically using On Board Diagnostics (OBD)
^ When complaints are received Perform basic setting in Guided Fault Finding with the VAS 5051. For this, use the Go to button in the Functions/Component selection.

2 - Bracket
3 - Subframe
4 - Upper transverse link
5 - Connecting Left front level control system sensor G76
^ Do not pull connecting link from ball joint!

6 - Self-locking hex nut, 4 Nm
^ Always replace

7 - Lower transverse link
8 - Clamp
9 - Bolt, 9 Nm
