Trunk / Liftgate Switch: Service and Repair

Rear Lid Handle Unlock Switch -E234- - Jetta Wagon, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Removing inner rear lid trim

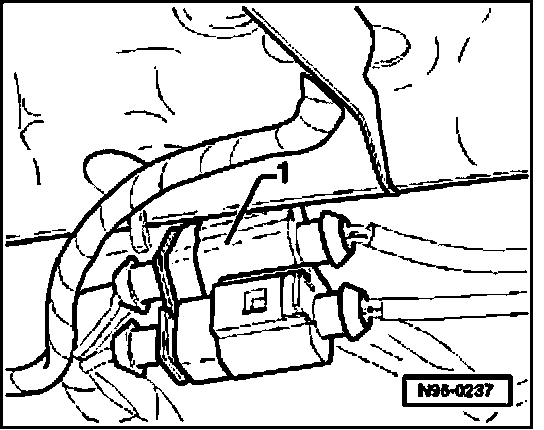

- Disconnect multi-connector -1-
- Remove rear wiper motor.

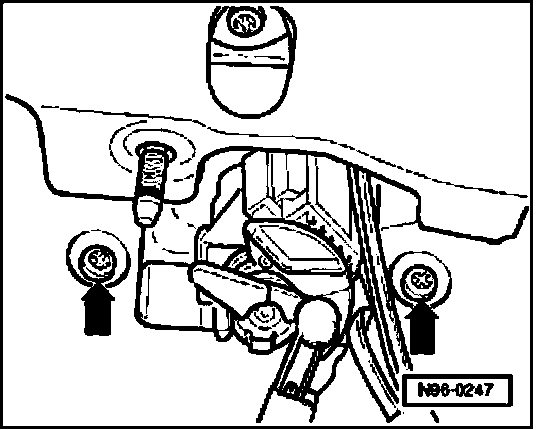

- Remove screws -arrows-.
- Remove switch upwards.

Installing
Install in reverse order of removal.
