Display Group 009
Display Group 009
Display Group 009

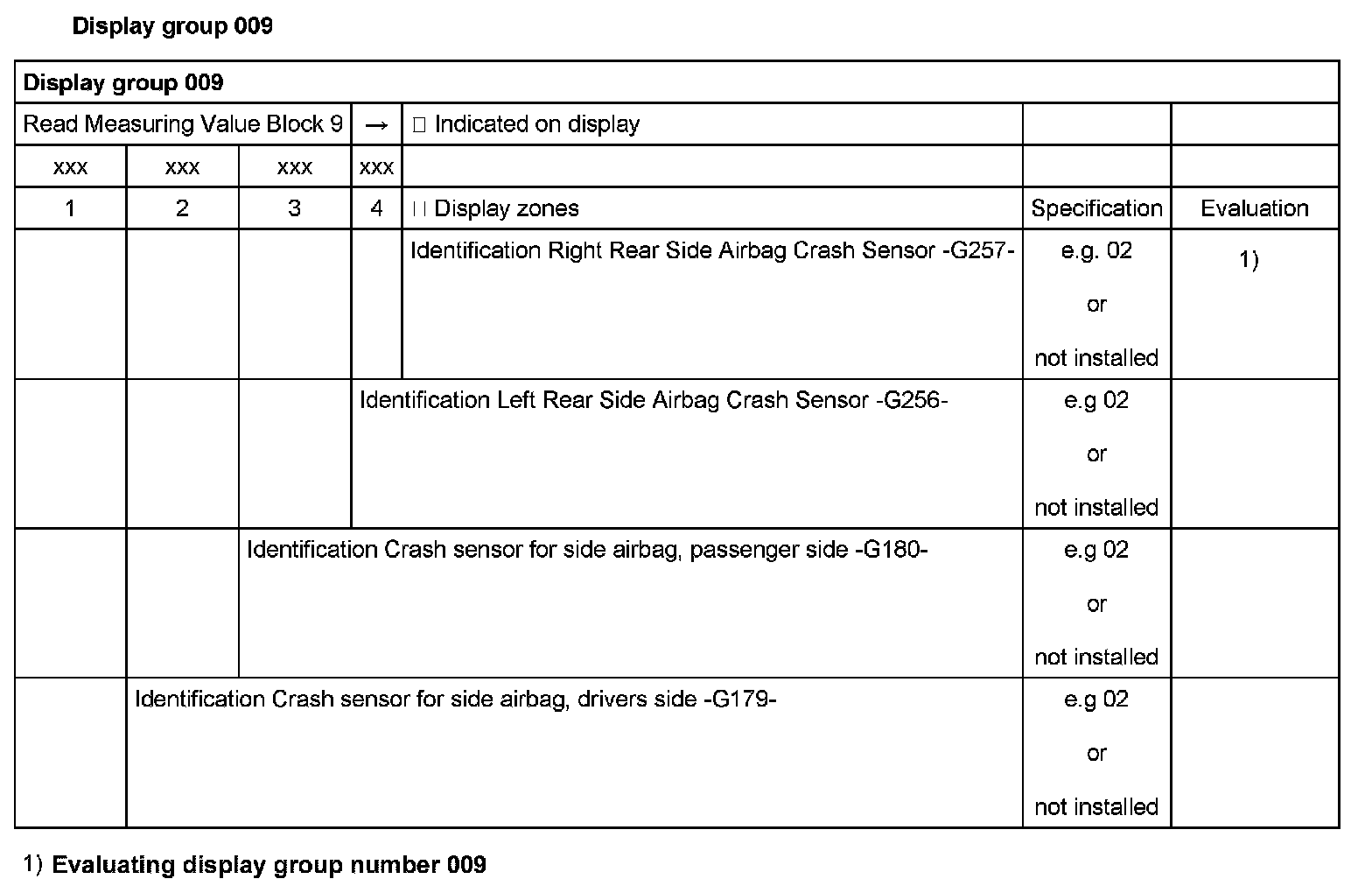

Display Group 009:
Evaluating display group 009
Display Zone 1 - 4:
