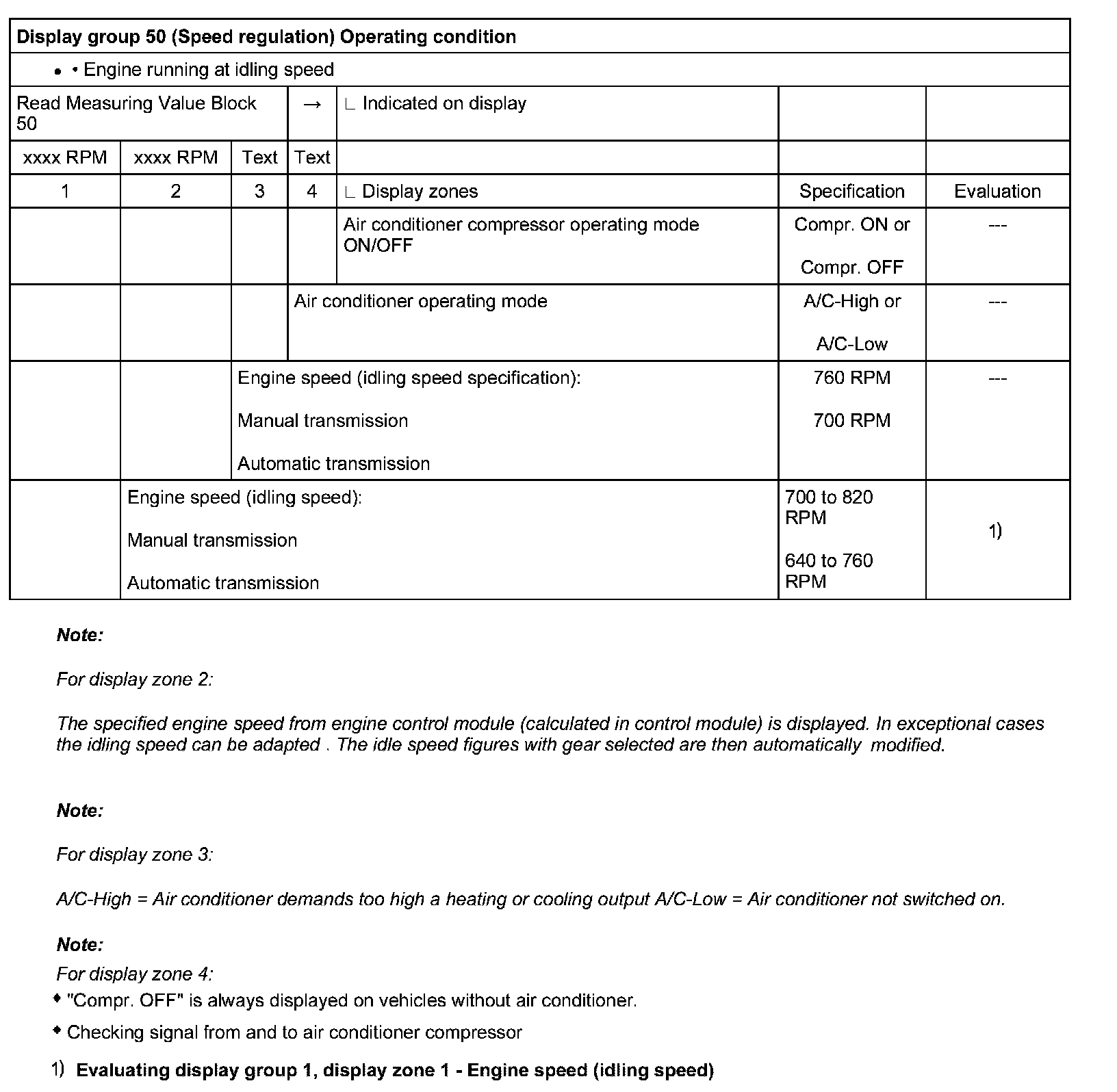

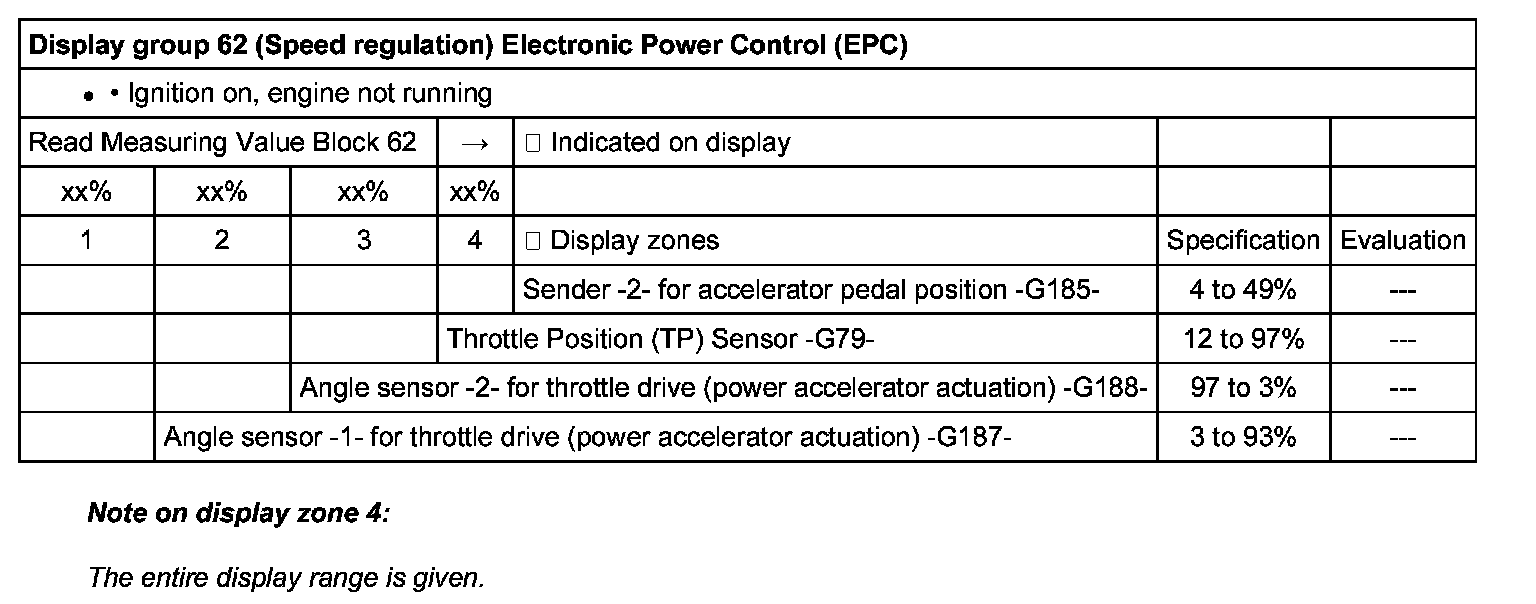

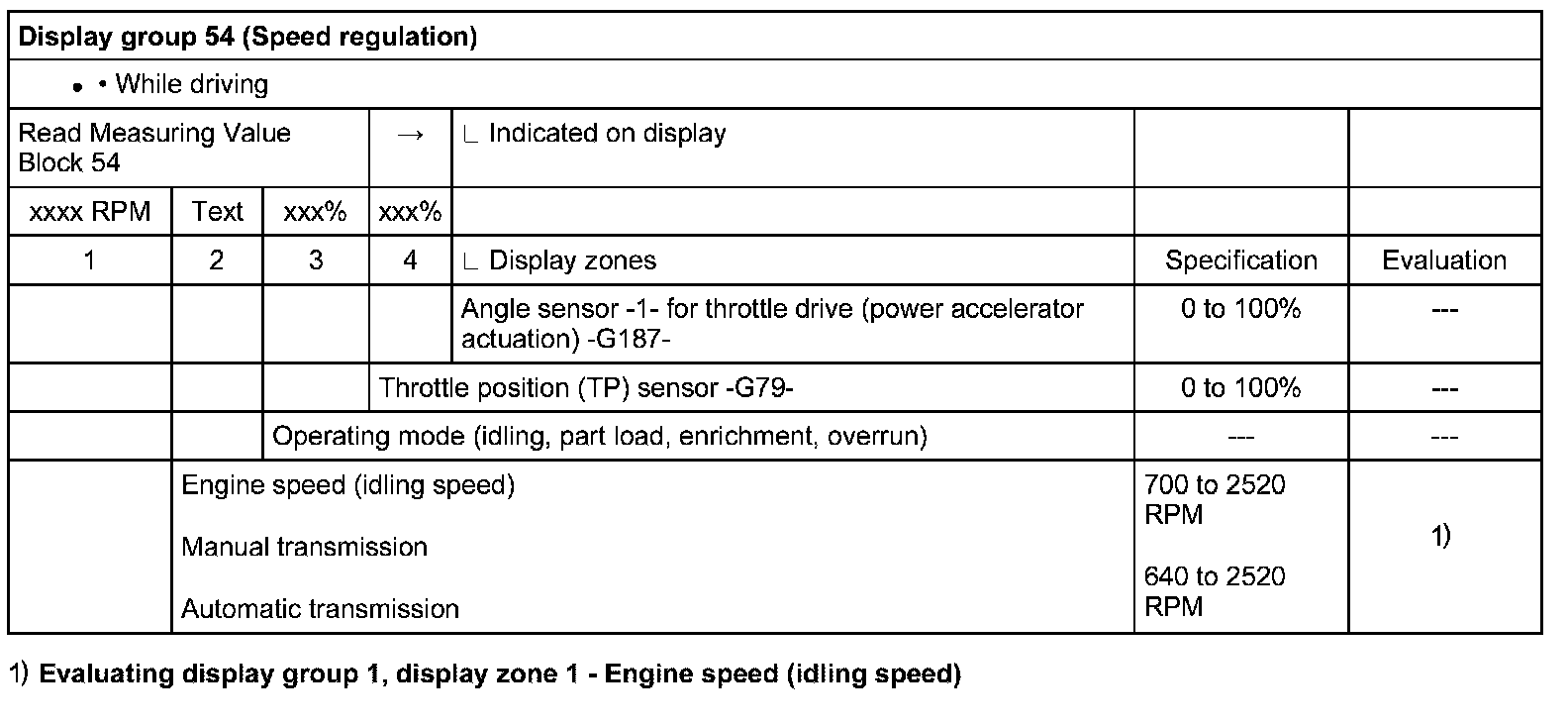

Display Groups 50 to 69 (Speed Regulation)

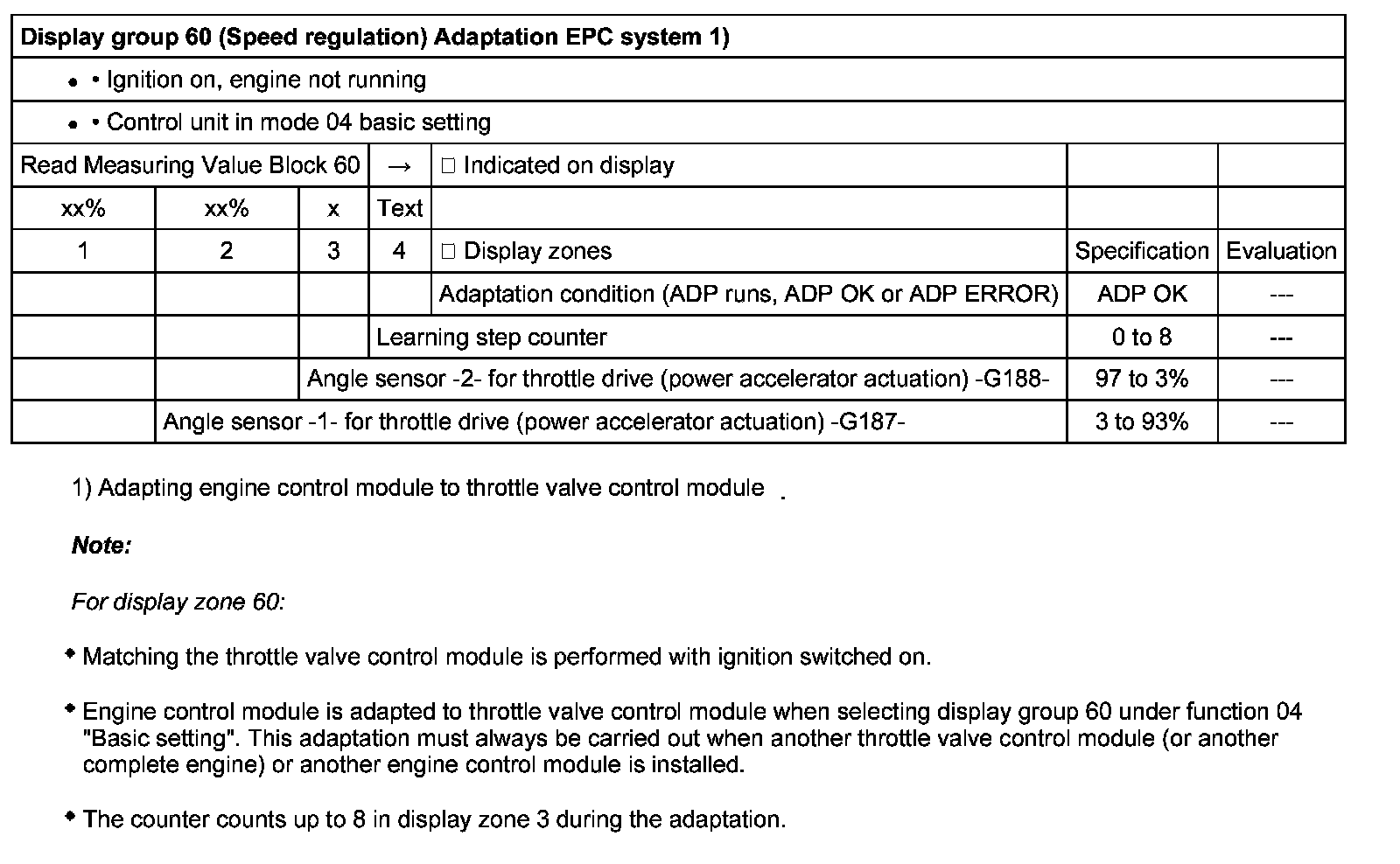

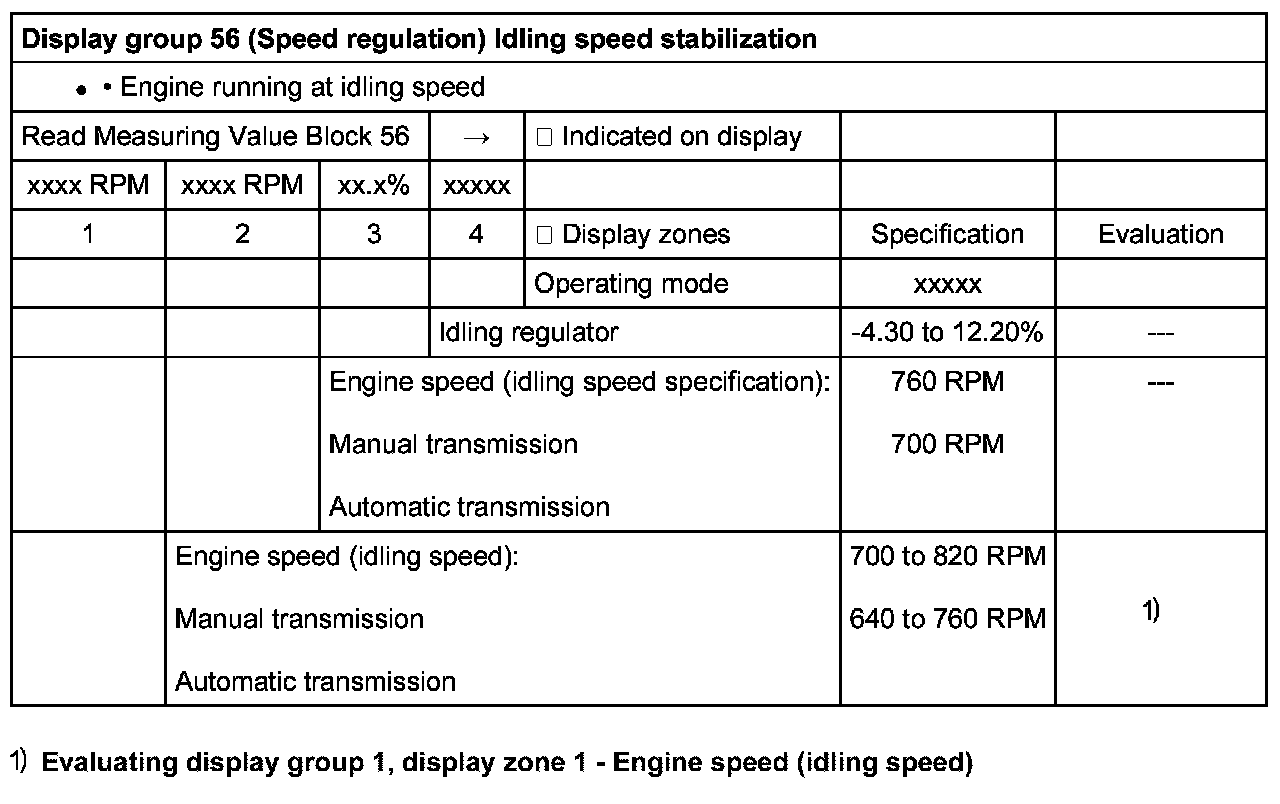

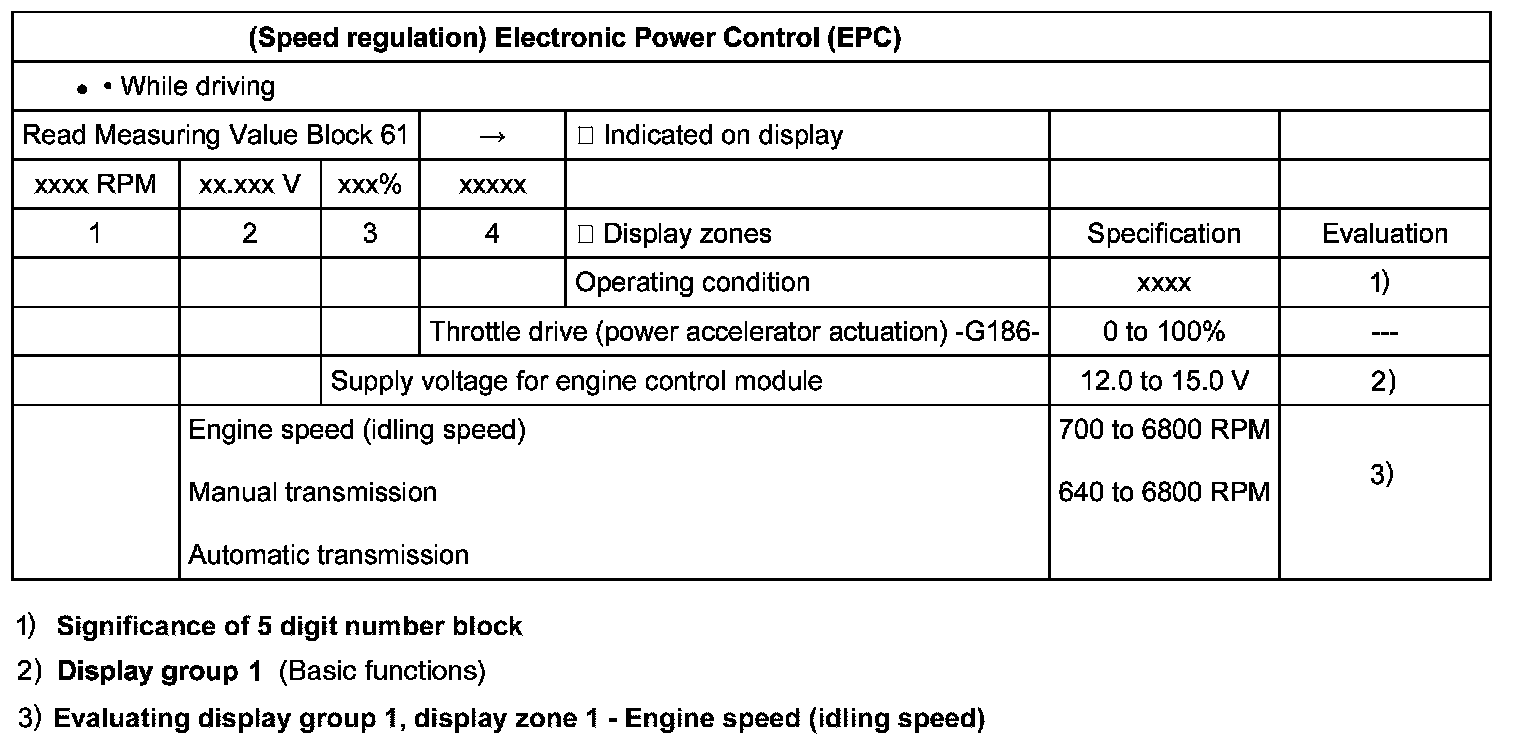

Measuring Value Blocks, Evaluating Display Groups 50 To 69 (Speed Regulation)

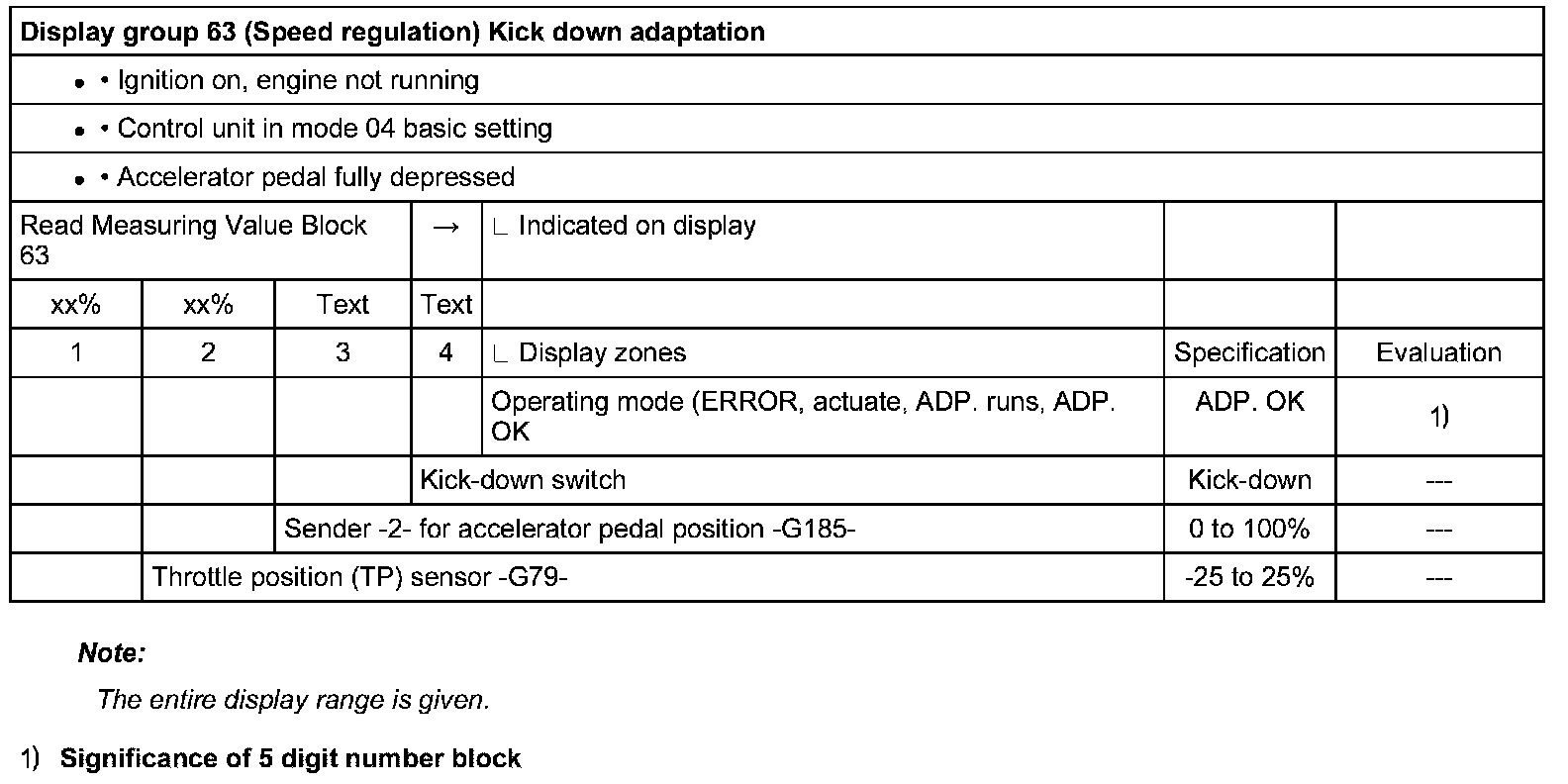

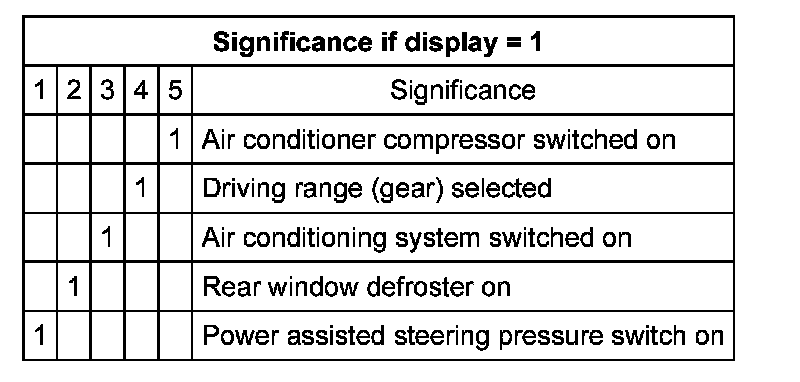

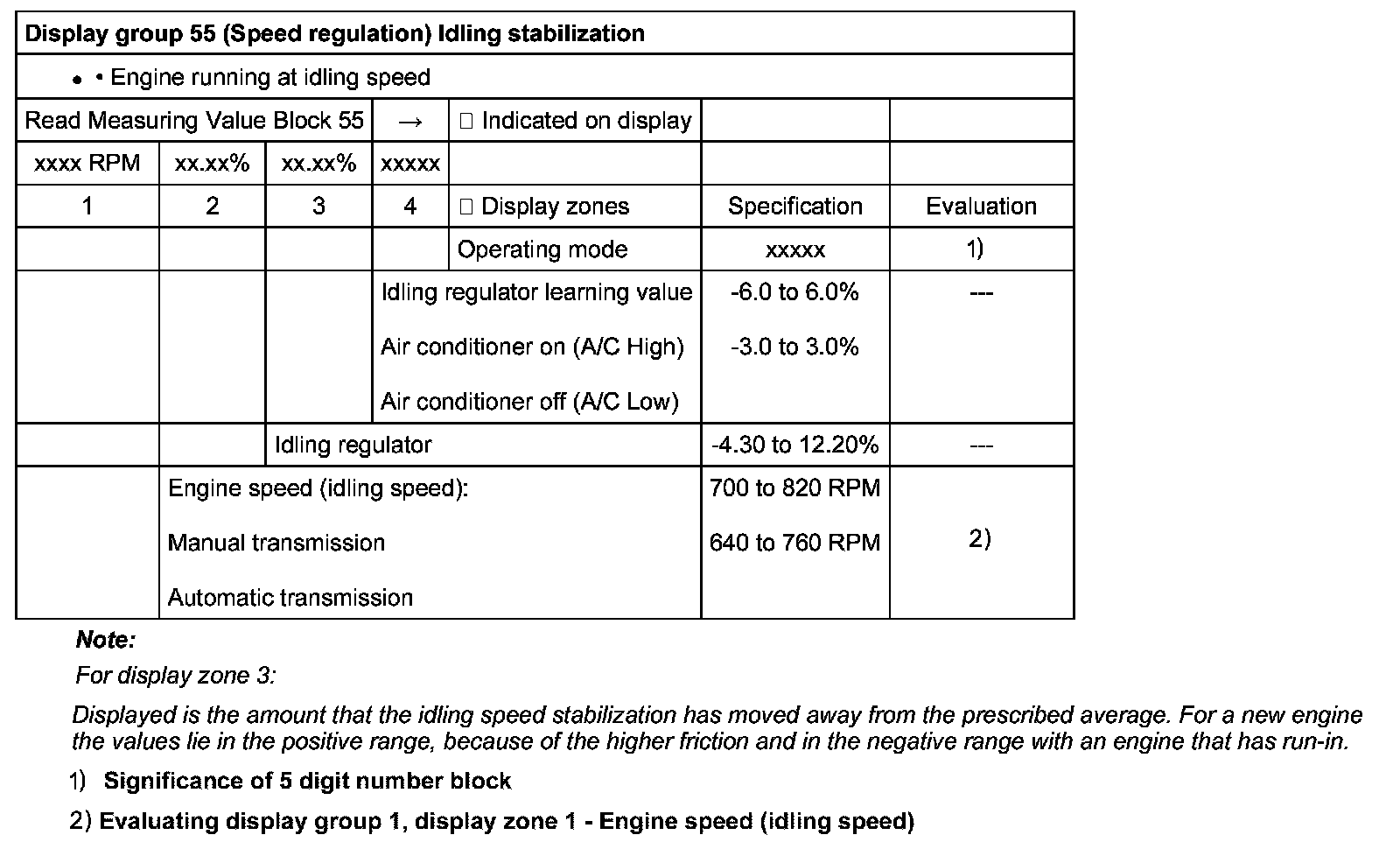

Significance of 5 digit number block










Readiness code

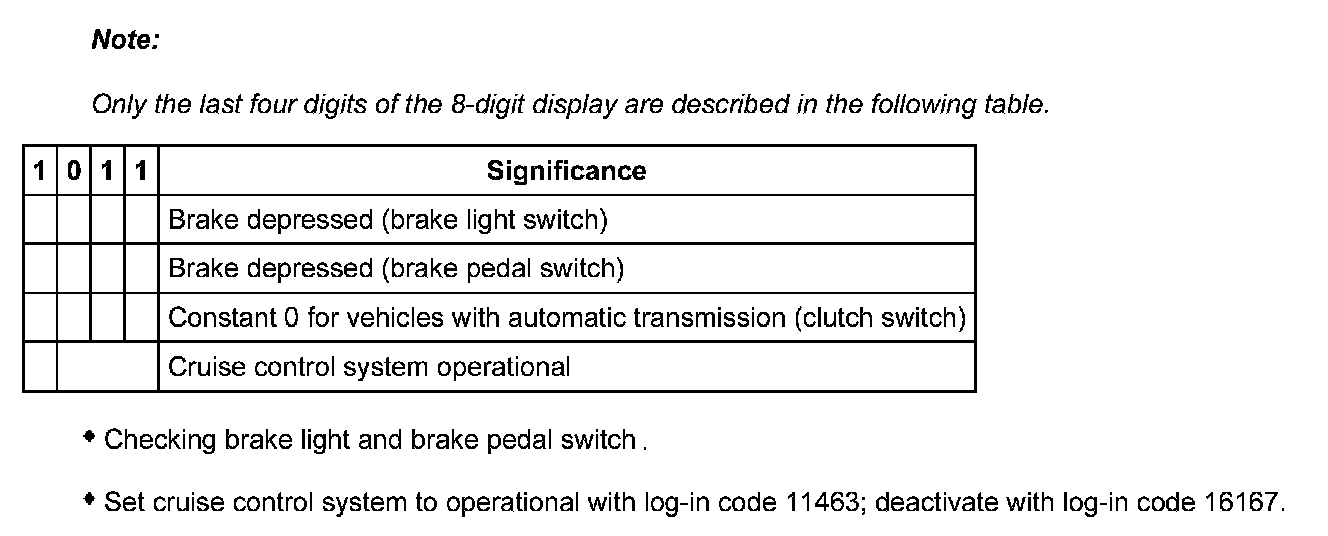

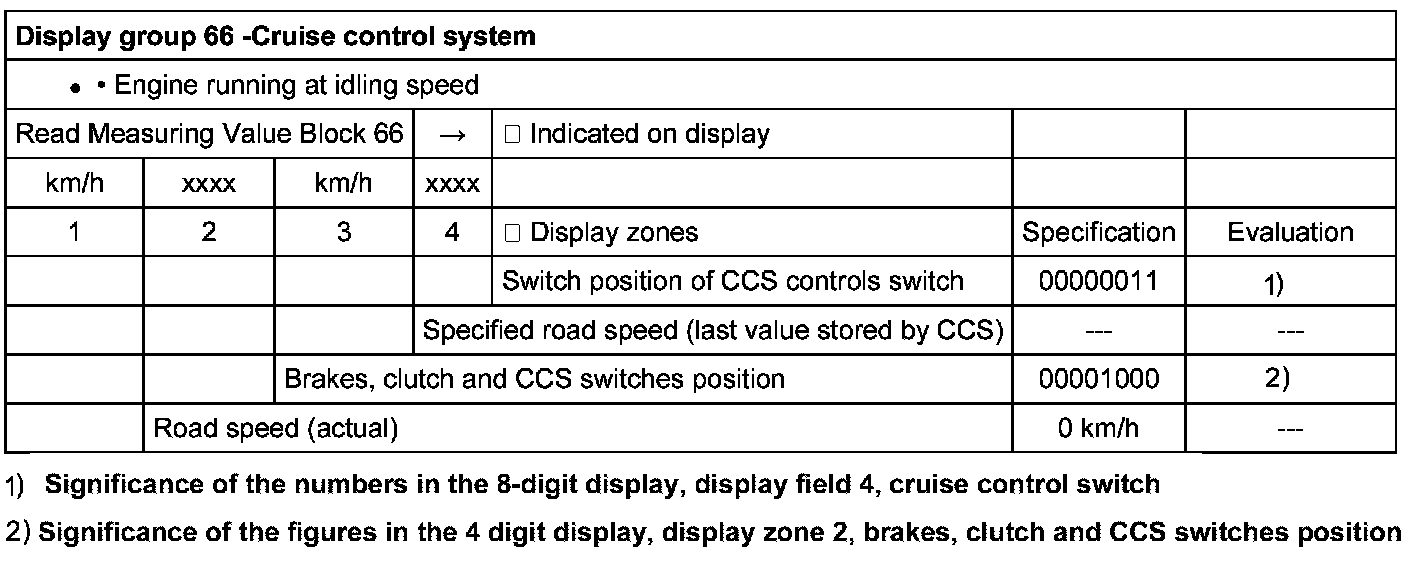

Significance of the numbers in the 8-digit display, display field 2, brake and cruise control switch

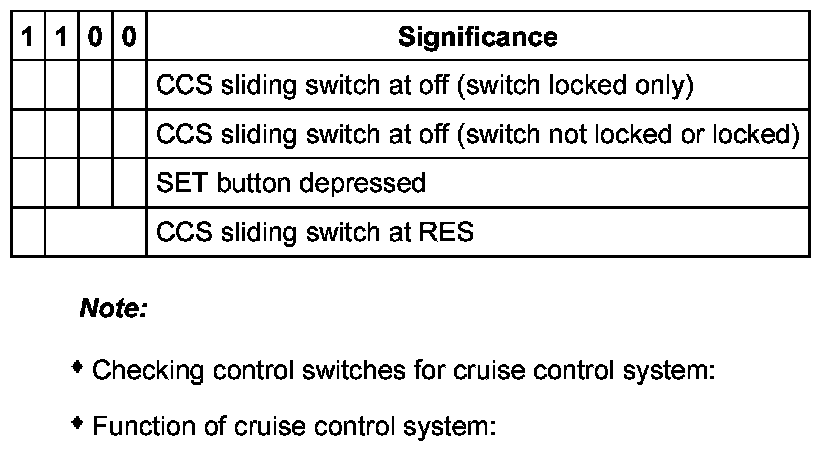

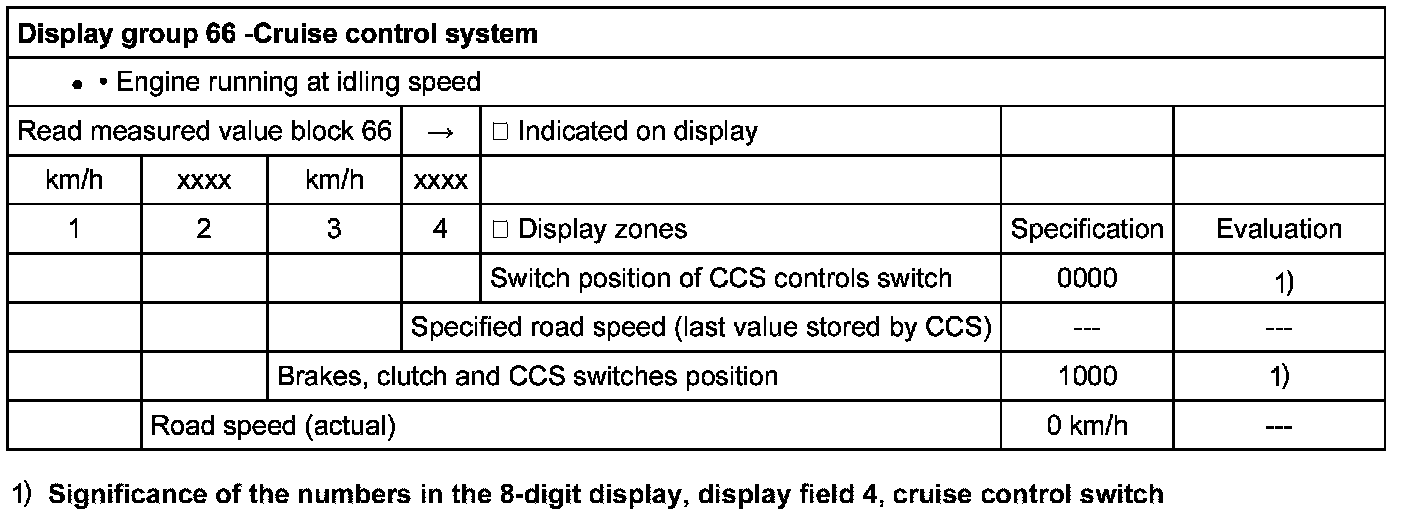

Significance of the numbers in the 8-digit display, display field 4, cruise control switch

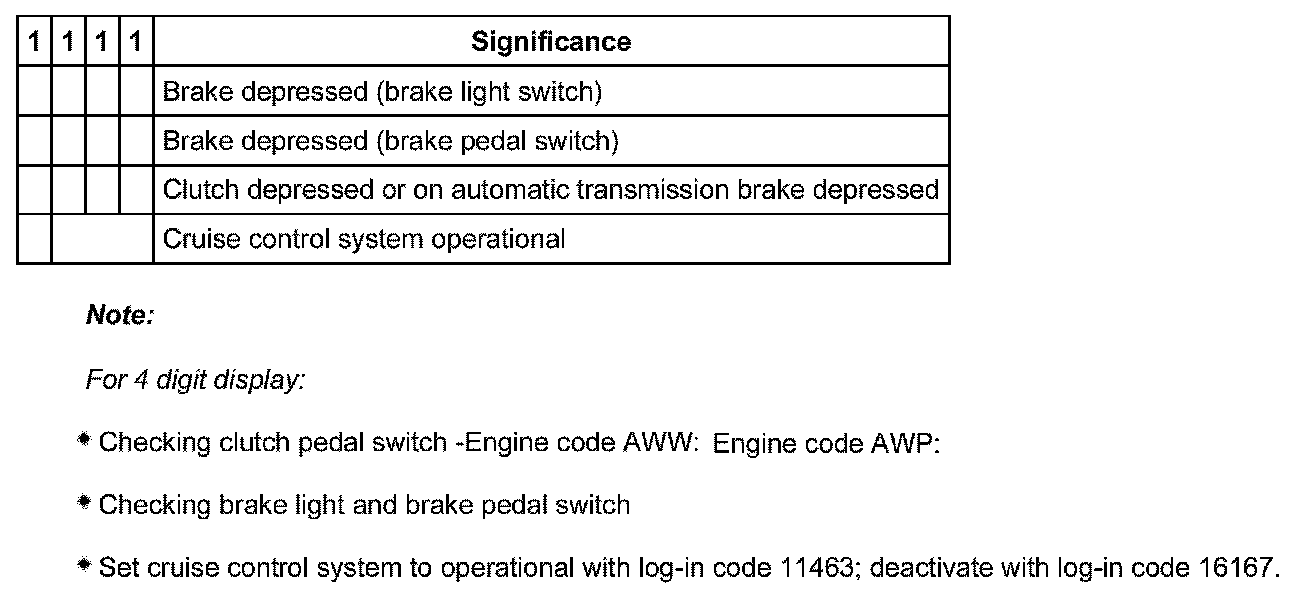

Significance of the figures in the 4 digit display, display zone 2, brakes, clutch and CCS switches position







Significance of the figures in the 4 digit display, display zone 4, CCS control switches
