Drive Belt: Testing and Inspection

Ribbed Belt, Checking

CAUTION: Always replace ribbed belt if found to be faulty. This will avoid related failures or operating problems.

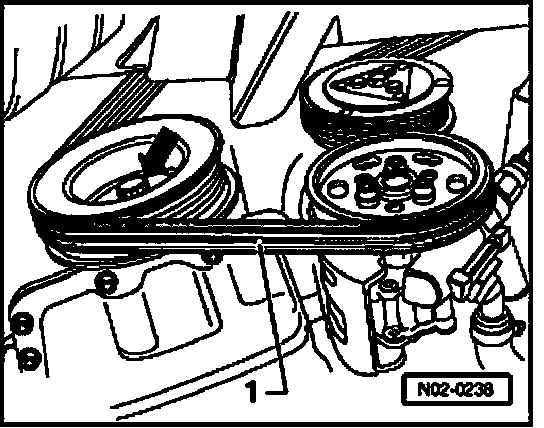

- Lift vehicle and check condition of ribbed belt -1-.







- Crank engine by hand at vibration dampener/pulley -arrow-. Check ribbed belt for:
- Sub-surface cracks (cracks, core ruptures, cross sectional breaks)
- Layer separation (top layer, cord strands)
- Base break-up
- Fraying of cord strands
- Flank wear (material wear, frayed flanks, flank brittleness -glassy flanks-, surface cracks)
- Traces of oil and grease
