Ribbed Belt, Routing

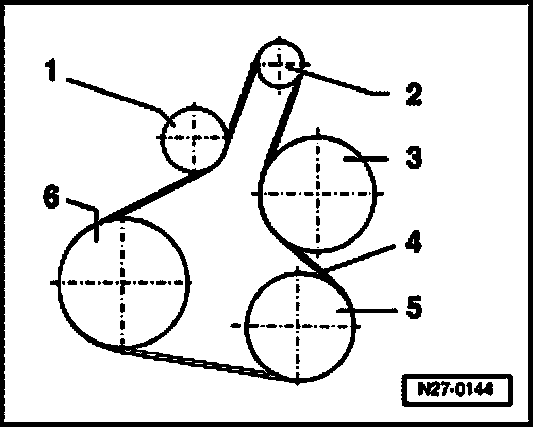

Ribbed Belt Routing

4-cylinder gasoline engine with power steering pump and A/C compressor







1. Tensioning roller
2. Pulley - generator (GEN)
3. Pulley - a/c compressor
4. Ribbed belt - generator, a/c compressor, power steering pump and crankshaft/vibration damper
5. Pulley - power steering pump
6. Pulley - crankshaft/vibration damper
