Brake Pedal Assy: Locations

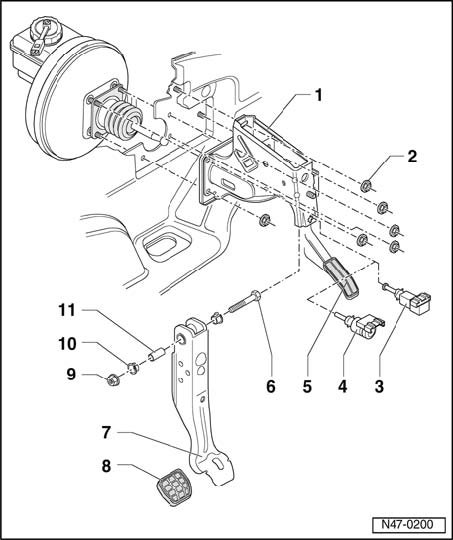

Brake pedal - assembly overview





WARNING!
The brake pedal travel must not be restricted by additional floor mats.

Note:
Grease all mountings before installing with grease Part No. G 000 602.

1- Mounting bracket
2- Self-locking hex nut, 28 Nm (20.7 ft. lb)
^ Always replace
3- Brake Light Switch -F-
^ "Old style"
^ Integrated with Brake Pedal Switch (cruise control/DFI) -F47- on Diesel models and models with cruise control.





4- Brake Light Switch -F-
^ "New style"
^ Integrated with Brake Pedal Switch (cruise control/DFI) -F47- on Diesel models and models with cruise control.
5- Accelerator pedal
6- Hex bolt
7- Brake pedal
8- Pad
9- Self-locking hex nut, 20 Nm (15 ft. lb)
^ Always replace
10- Mounting bushing
11- Pivot pin
