Tailgate Trim, Removing and Installing (Golf Wagon/Jetta Wagon)

Tailgate Trim, Removing And Installing (Golf Wagon/Jetta Wagon)

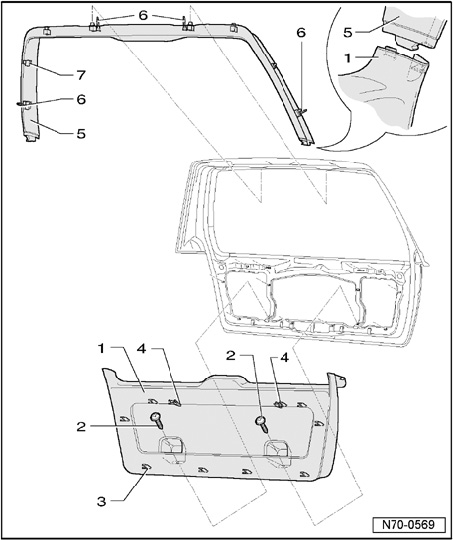

Removing
- Remove bolts - 2 - from lid.
- Unclip lower trim - 1 - from lid at bottom.
- Unclip lower trim - 1 - at sides from upper trim - 5 - (harness connector).







- Unclip upper trim - 5 - first at sides out of clips - 7 -, then unclip at upper area.







Installing
- Installation is reverse of removal.

NOTE: Before installing, check clips -3- and -7 -for damage and replace if necessary.
