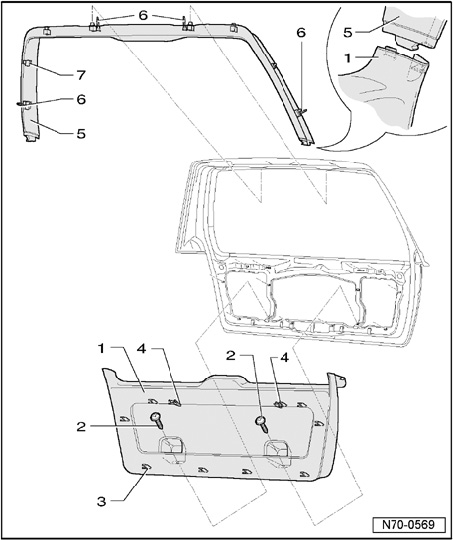

Tailgate Trim, Assembly Overview (Golf Wagon/Jetta Wagon)

Tailgate Trim, Assembly Overview (Golf Wagon/Jetta Wagon)







1 - Lower trim panel
2 - Screws
- Qty. 2

3 - Clips
- Qty. 10

4 - Guide pin
- Qty. 2

5 - Upper trim
6 - Guide pins
- Qty. 4

7 - Clips
- Qty. 8
