Rear Lock Carrier Cover, Removing and Installing (Golf Wagon/Jetta Wagon)

Rear Lock Carrier Cover, Removing And Installing (Golf Wagon/Jetta Wagon)

Removing

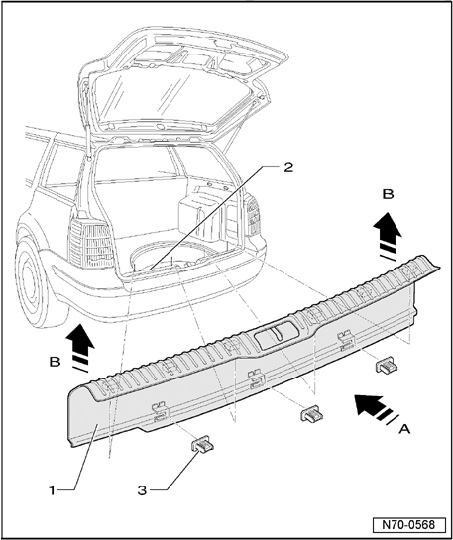

- Release lock carrier cover - 1 - at bottom from trim panel - 2 - - arrow A -.







- Remove lock carrier cover - 1 - from trim panel - 2 - - arrow B -.







Installing
Installation is reverse of removal.

NOTE: Before installing, check clips -3-for damage and replace if necessary.
