Fuel Door Release Actuator: Service and Repair

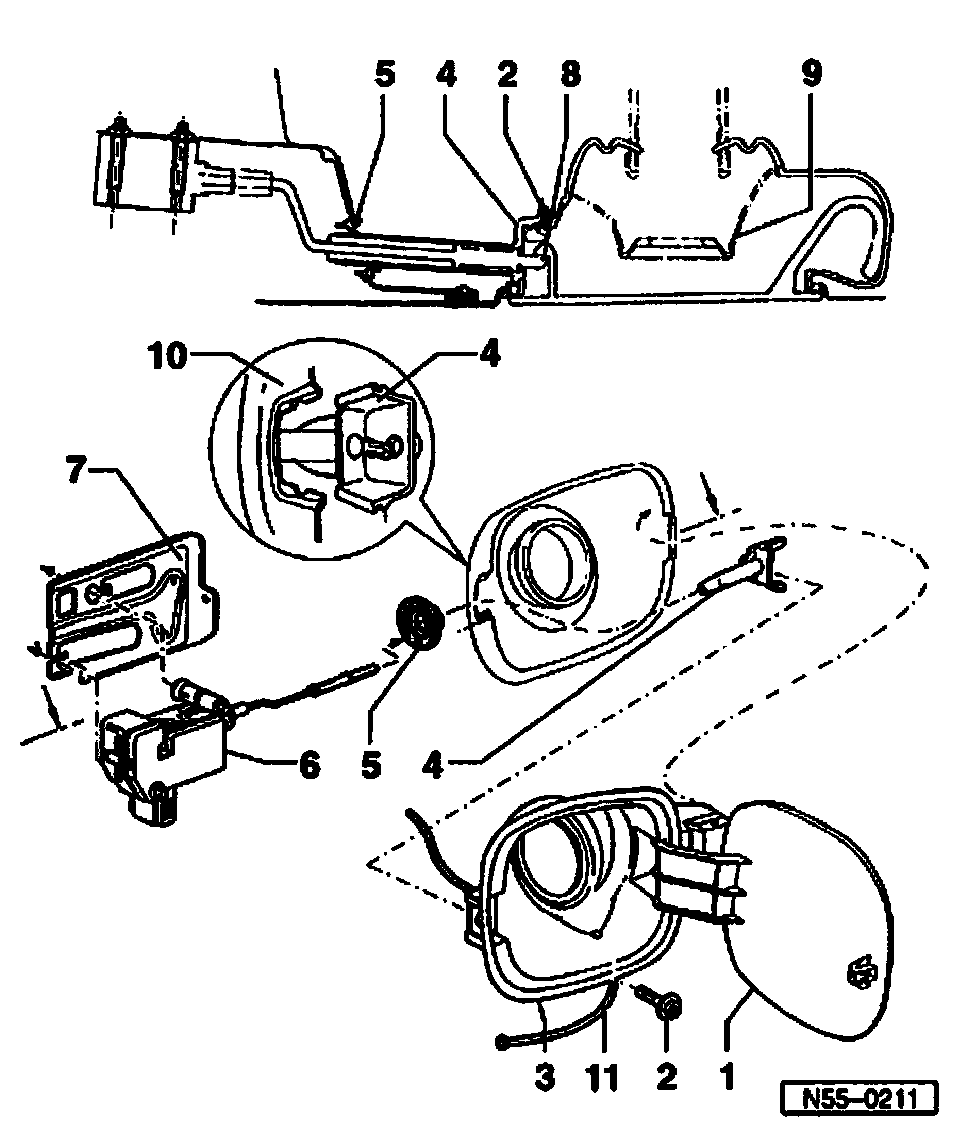

Fuel Flap Unit, Removing And Installing (Jetta)







1. Tank flap unit

- Removing
- Unscrew fuel tank cap.
- Press back release rod by operating remote unlocking.
- Remove bolt.
- Remove rubber part of tank filler flange and swivel out fuel flap unit from side panel.

- Installing:
- Assembly piece and actuator element are installed.
- Install fuel flap unit (rubber part rolled up) with hinge side first.
- Bolt in fuel flap unit and assembly piece.

2. Screw
3. Tank flap cup
- Removing and installing (can only be removed as part of fuel flap unit)
- To remove fuel filler cap, press out securing pin in fuel flap unit
4. Assembly piece
- Inserted into side panel
5. Seal
6. Actuator for fuel filler flap
7. Angle bracket
8. Release rod
9. Rubber piece
- Must be rolled for installation
10. Side panel
