Torque Converter: Application and ID

Torque converter, identification, 09A, 5 Spd. A/T

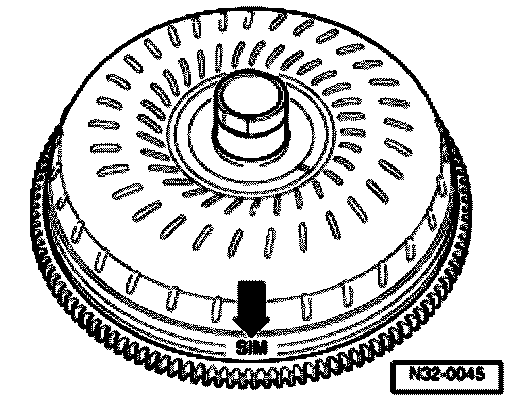

There are various torque converters. They are identified by the code letters (arrow).

Transmission/torque converter application





Torque converter code letters

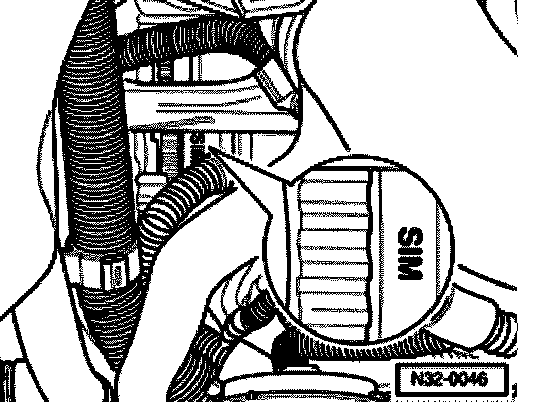

(Transmission installed)
