VAG 1551 Scan Tool, Connecting and Selecting Functions

VAG 1551 Scan Tool, connecting and selecting functions, 09A, 5 Spd. A/T

Connecting Scan Tool

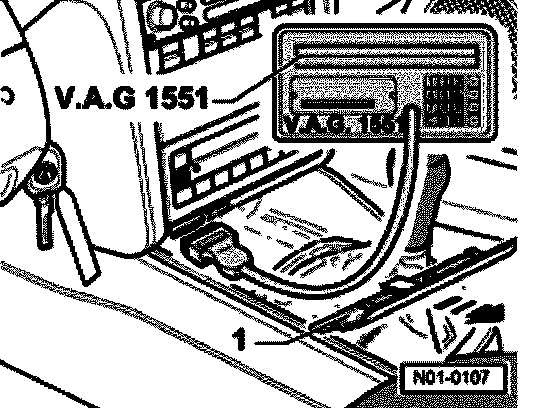

Remove Data Link Connector (DLC) cover -1-.
- With ignition switched off, connect V.A.G 1551 with diagnosis cable V.A.G 1551/3A.

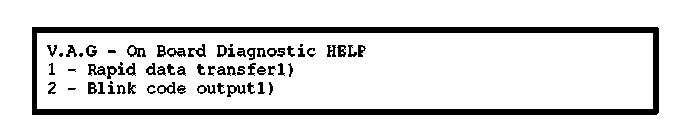

Indicated on display
1) appears alternately

Note:
^ Additional operating instructions can be called up by pressing the HELP key of V.A.G 1551.
^ The -> key is used for advancing within the program sequence.

go to V.A.G 1551 Scan Tool operating instructions.
