Home >> Volkswagen >> 2005 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Test Table >> Test Step 1

Test Step 1

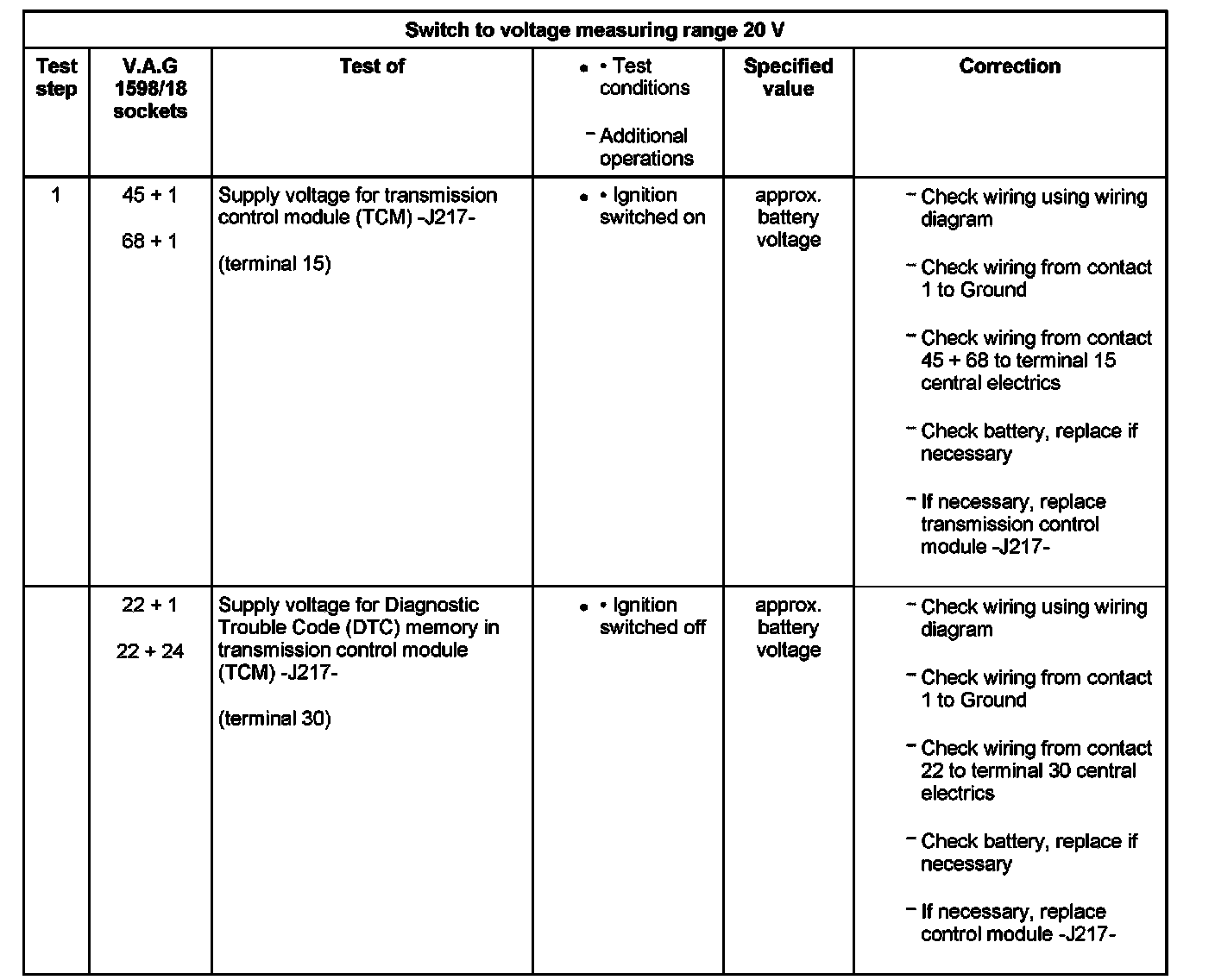

Test Table, Test Step 1:
