Home >> Volkswagen >> 2005 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection

Shift Interlock: Testing and Inspection

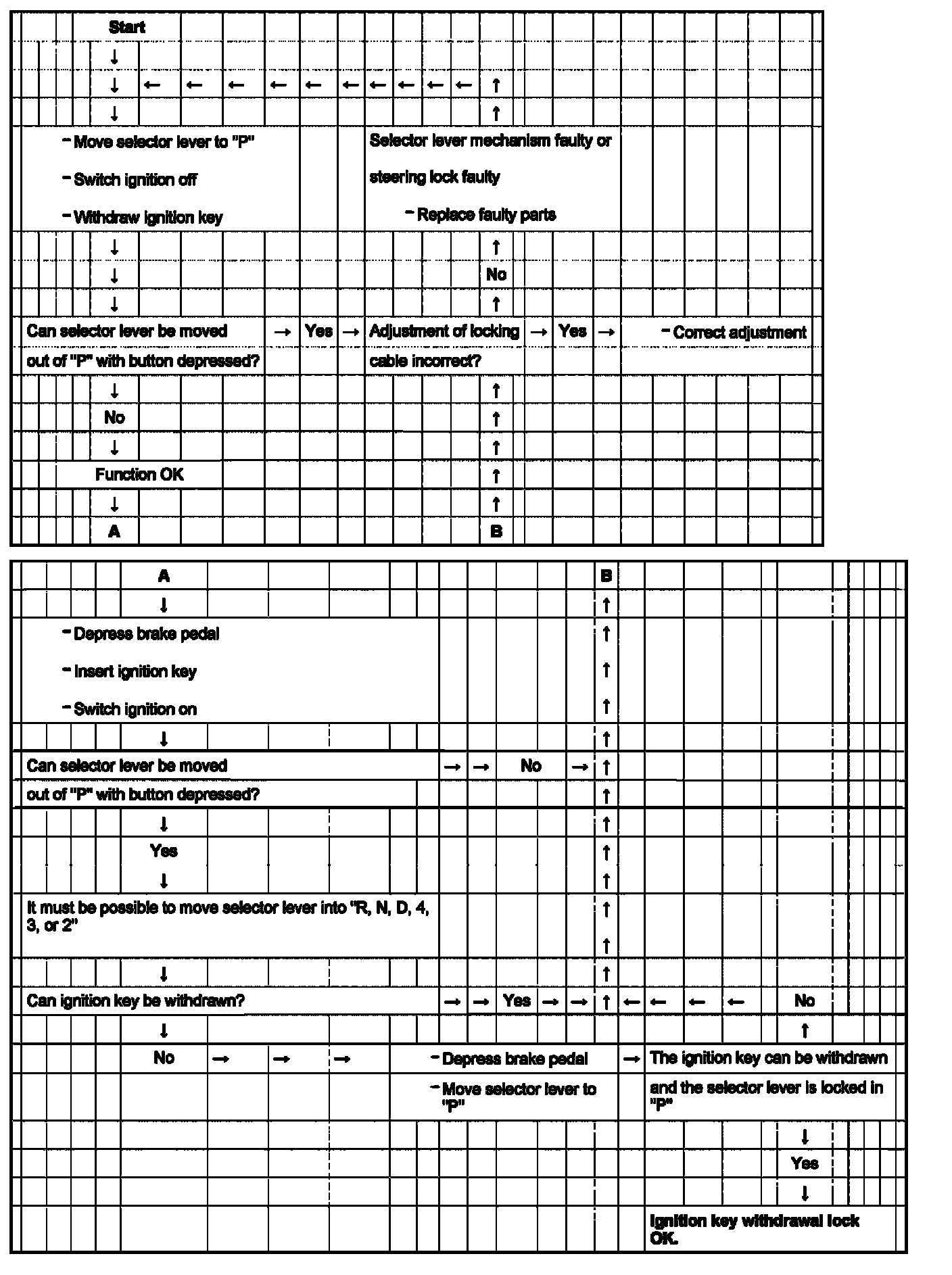

Checking operation of the ignition key withdrawal lock, 09A, 5 Spd. A/T
