ATF, Topping Up

ATF, topping up, 09A, 5 Spd. A/T

WARNING:
- When working in the vicinity of the radiator, always maintain a safe working distance - Danger of injury!
- Fan could start automatically.

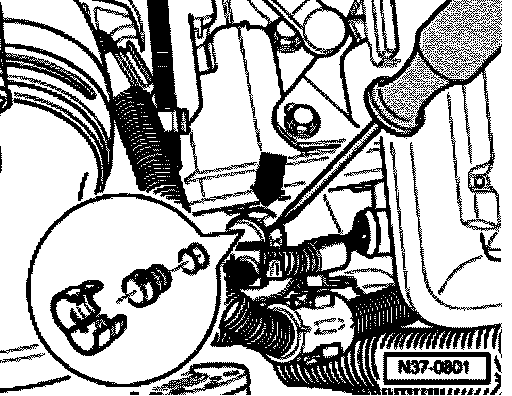

- Pry off plug securing cap (arrow) with a screwdriver. Cap locking device will be destroyed. Always replace cap.
- Pull plug out of filler pipe.

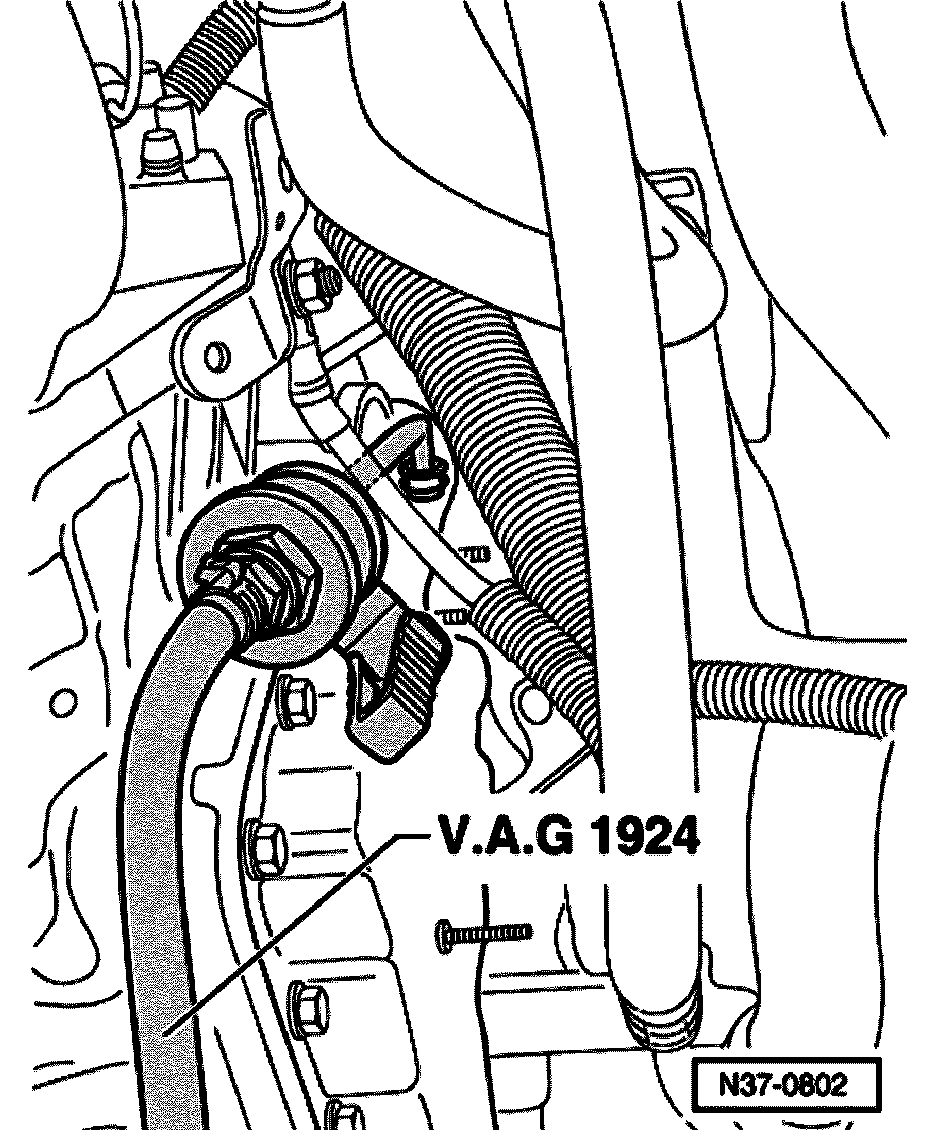

- Fill with ATF using VAG 1924 until ATF runs out of inspection hole.

If ATF needs to be topped up, then only ATF with Part No. G 052 990 A2 may be used.

Note: An insufficient ATF filling as well as filling to excess affects the function of the transmission.

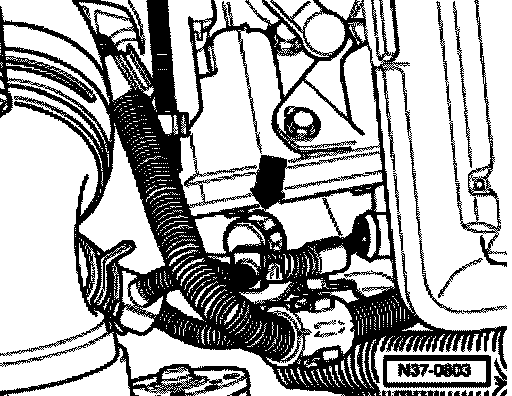

- Install plug on filler pipe and secure with a new cap (arrow).
- Lock cap.

Note: Always replace cap. The cap secures the sealing plug.

Ending output of V.A.G 1551





Indicated on display
- Press -> key.

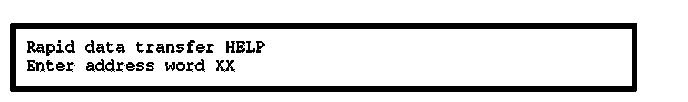

Indicated on display

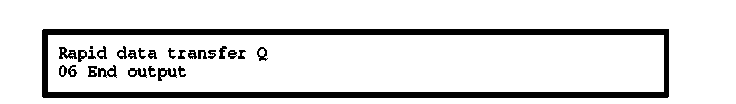

- Press keys 0 and 6 (The function End output is selected with 06).

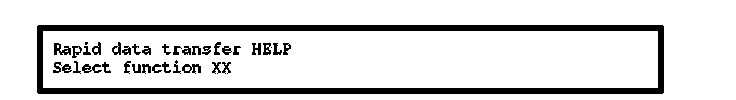

Indicated on display
- Confirm entry with Q key.





Indicated on display
- Lower vehicle.
- Switch ignition off.
- Disconnect connection to V.A.G 1551 Scan Tool.
