Home >> Volkswagen >> 2005 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Fuse Arrangements In Fuse Bracket/Battery

Fuse Arrangements In Fuse Bracket/Battery

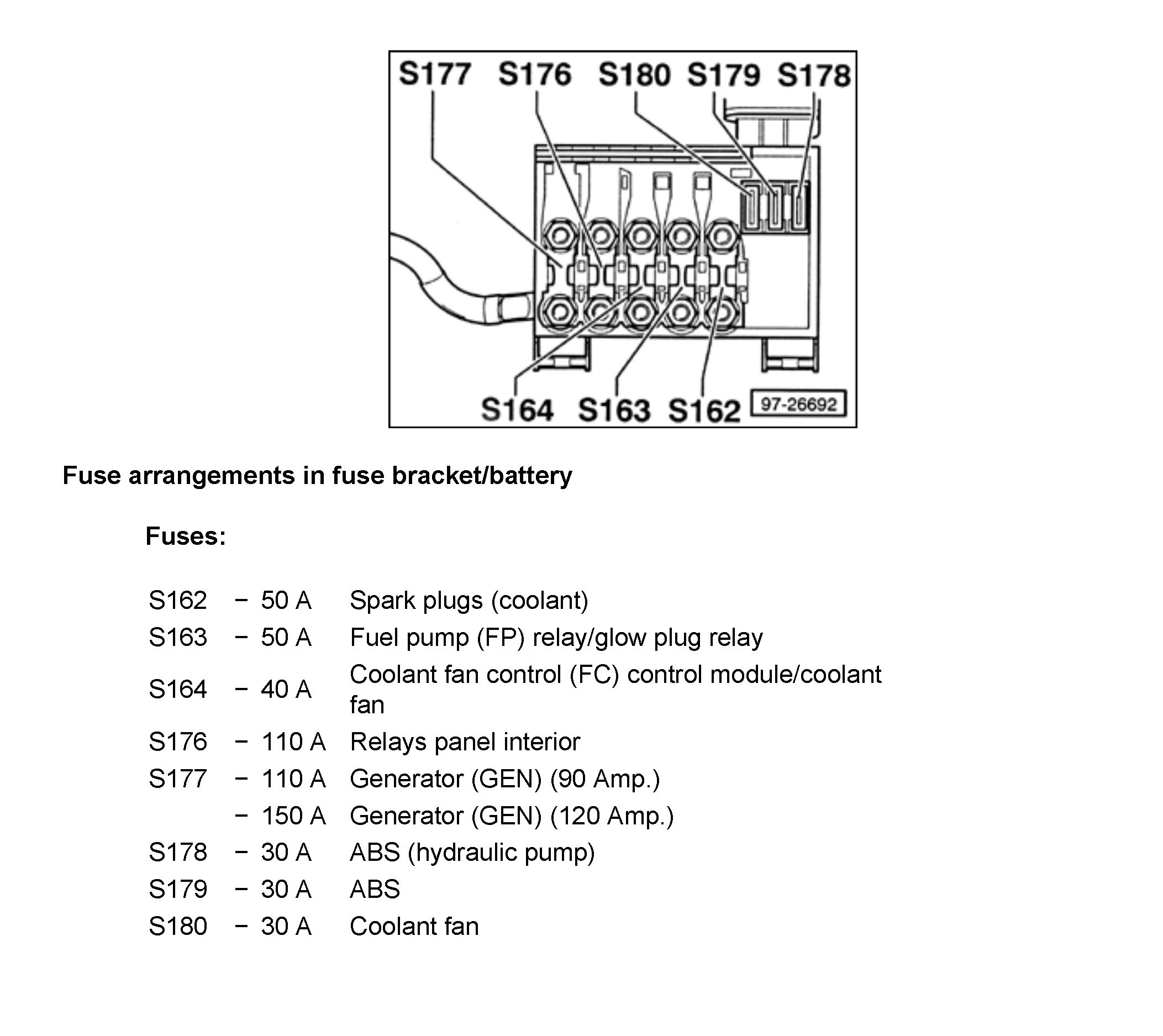

Fuse arrangements in fuse bracket/battery
