Fuel Gauge Sender: Service and Repair

Fuel Gauge Sender, Removing And Installing

Removing
- Remove fuel delivery unit.

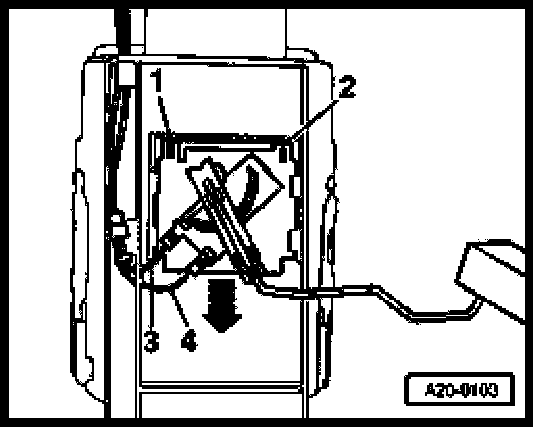

- Release and pull off the terminals for wires -3- and -4-.
- Lift retaining tabs -1- and -2- with a screwdriver and pull fuel gauge sender out downward -arrows-.

Installing
- Insert fuel gauge sender in guides on fuel delivery unit and push up until it engages.
- Installing fuel delivery unit.
