Trunk / Liftgate Switch: Service and Repair

Rear Lid Handle Unlock Switch -E234- - Jetta, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Removing inner rear lid trim

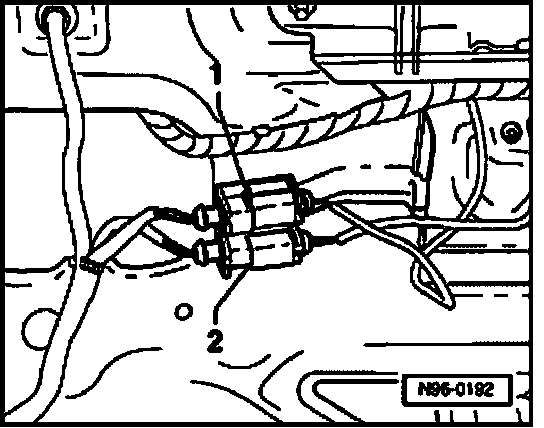

- Unclip multi-connectors -1- and -2- from retainers and disconnect.

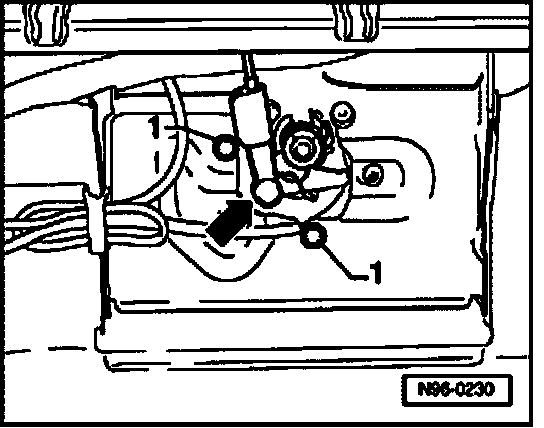

- Unclip rod -arrow- from lock cylinder.
- Remove screws -1-.
- Remove lock cylinder upwards.

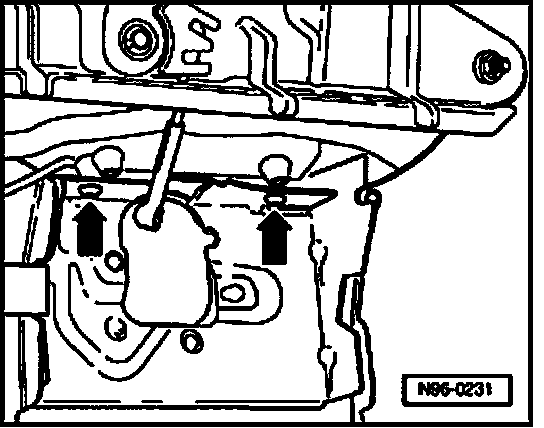

- Remove screws -arrows-
- Remove switch upwards.

Installing
Install in reverse order of removal.
