Fuel Injector: Service and Repair

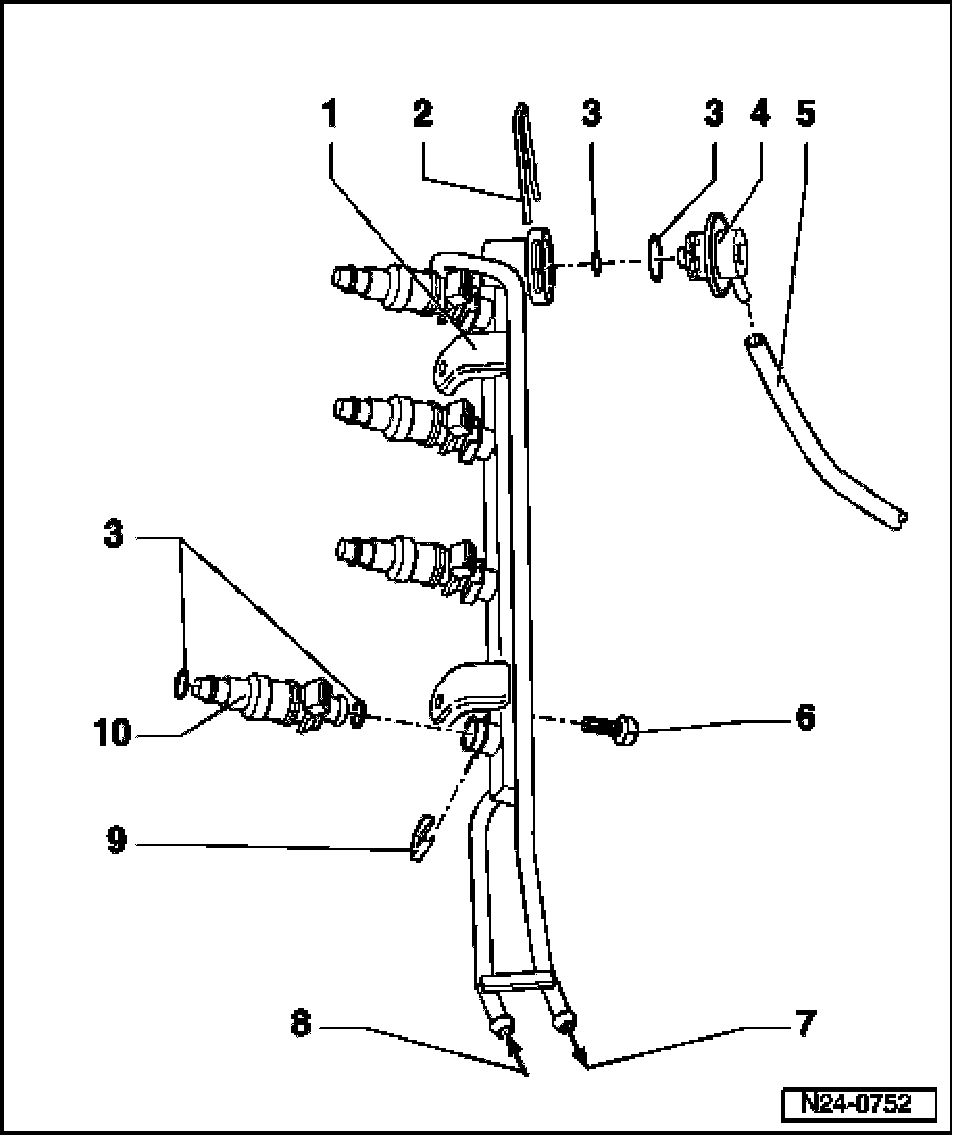

Fuel Rail With Injectors, Disassembling And Assembling







1. Fuel rail
2. Retaining clip
- Ensure seated correctly at injector and fuel rail
3. O-ring
- Replace if damaged
4. Fuel pressure regulator
5. Vacuum hose
6. 10 Nm
7. Return flow connection
8. Supply connection
9. Retaining clip
- Ensure seated correctly at injector and fuel rail
10. Injectors -N30- to -N33-*/**
- Resistance 12 to 17 Ohms
