Secondary Air System Components, Removing And Installing







NOTE:
- Components marked with an * are checked by the On Board Diagnostic (OBD).
- Components marked with ** are checked by Output Diagnostic Test Mode (DTM).

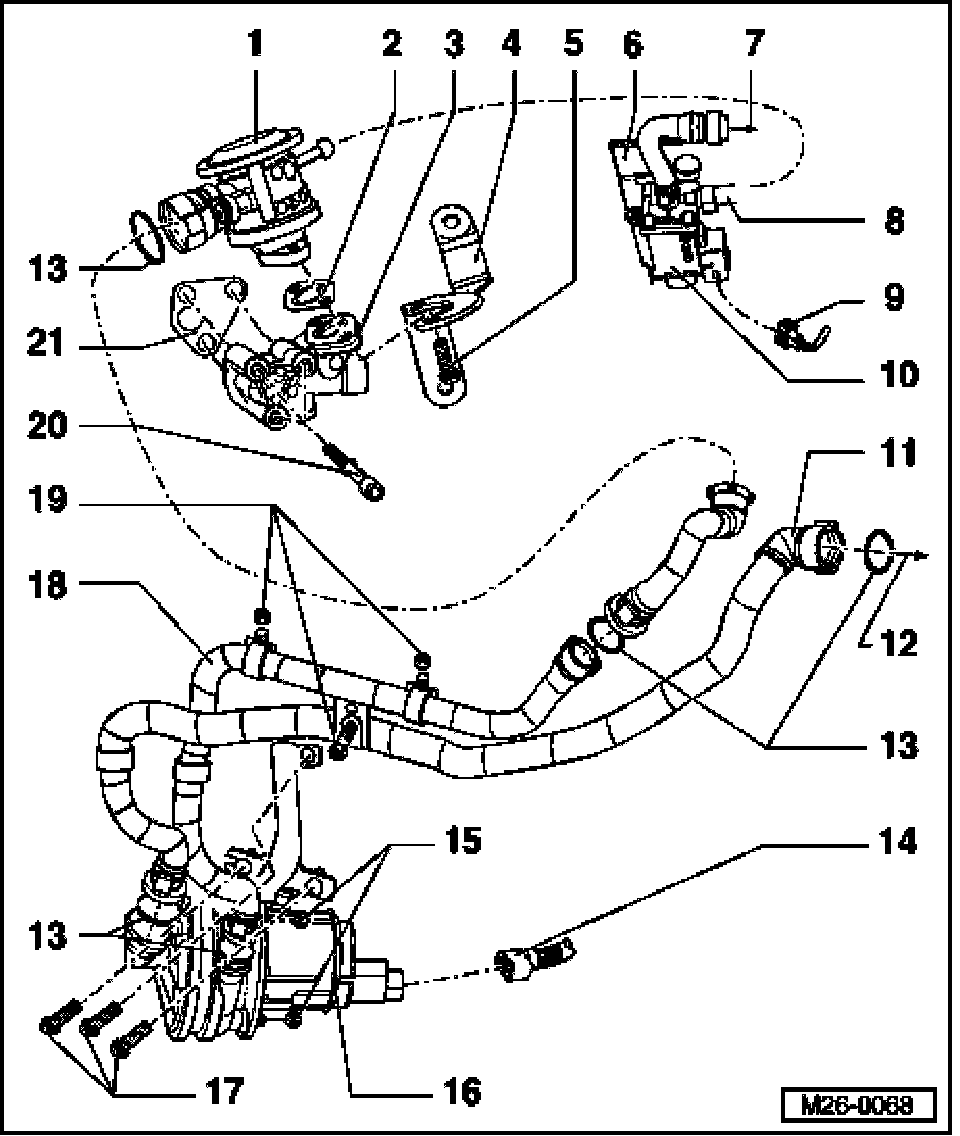

- Secondary Air Injection (AIR) pump relay -J299-**, See Fig. 1

1. Combi-valve
2. Gasket
3. Connection
- Secured to cylinder head
4. Bracket
5. 10 Nm
6. Bracket
- Secured to intake manifold
7. To vacuum reservoir
8. Vacuum hose
9. Connector
- 2 pin
10. Secondary Air Injection (AIR) solenoid valve -N112-.
- Secured to bracket with 6 Nm
- Resistance: 21 to 24 Ohms
11. Intake hose
- For secondary air injection pump
- Make sure seated tightly
- Press together at front to release
12. To air cleaner
13. O-Ring
14. Connector
- 2 pin
- For secondary air injection pump motor
15. 10 Nm
16. Secondary Air Injection (AIR) pump motor -V101-.
17. 10 Nm
18. Pressure hose
- Make sure seated tightly
- Press together at front to release
19. 10 Nm
- Secured to bracket.
20. 10 Nm
21. Gasket

Fig. 1 Secondary Air Injection (AIR) pump relay -J299- -arrow-







- If tools are necessary to pull relays or control modules out of the relay plate, first disconnect the battery Ground strap.
- Before disconnecting the battery Ground strap obtain code for radios with anti-theft coding.
