Secondary Air Injection (AIR) System Components, Removing And Installing







NOTE:
- Components marked with * are checked via On Board Diagnostic (OBD):

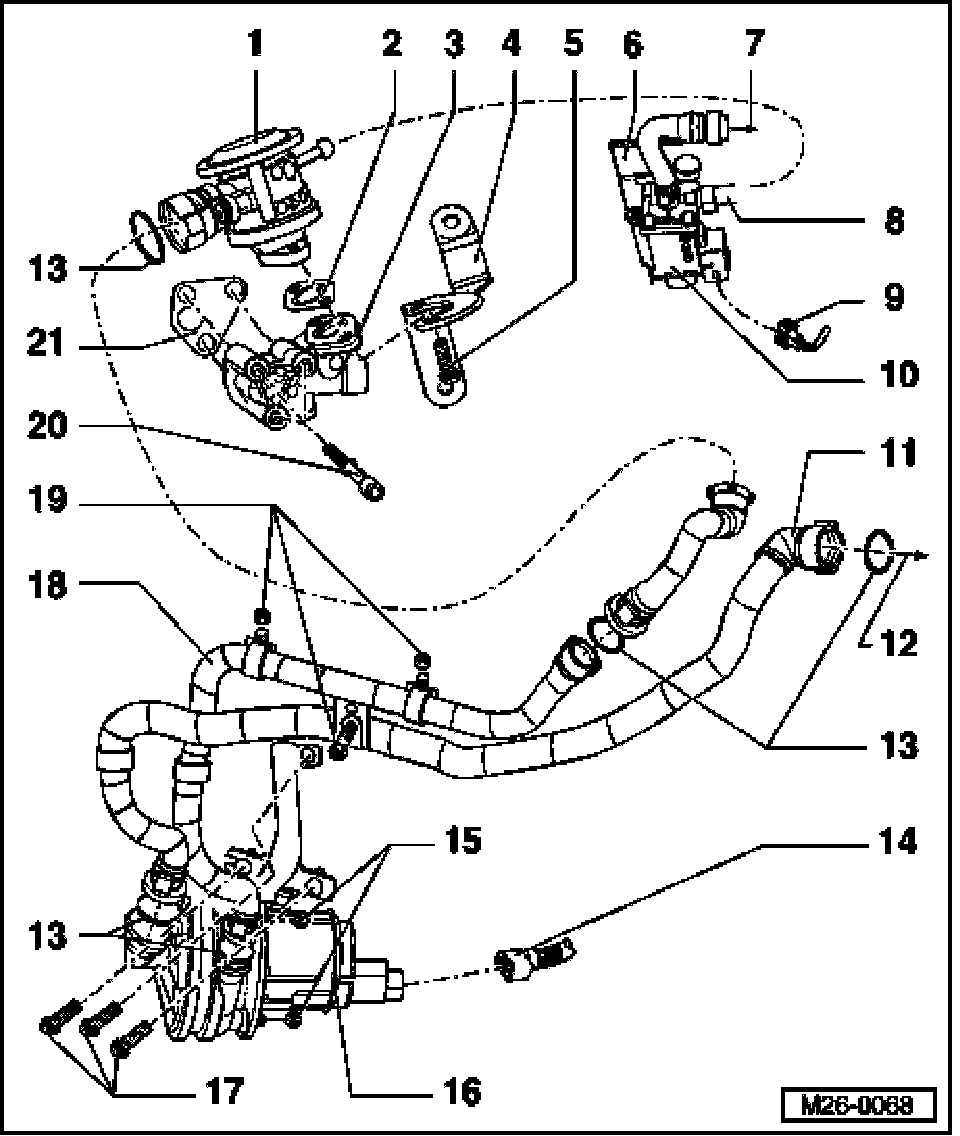

- Secondary Air Injection (AIR) Pump Relay -J299-*, See Fig. 1

1. Combination valve
2. Seal
3. Connecting piece
- Secured at cylinder head
4. Bracket
5. 10 Nm
6. Bracket
- Secured at intake manifold
7. To vacuum reservoir
8. Vacuum hose
9. Connector
- 2-pin
10. Secondary Air Injection (AIR) Solenoid Valve -N112-*
- Secured at bracket to 6 Nm
- Resistance: 21 to 24Ohms
11. Intake hose
- For Secondary Air Injection (AIR) pump
- Check for secure fitting
- To disengage, squeeze together at front
12. To air filter
13. O-ring
14. Connector
- 2-pin
- For Secondary Air Injection (AIR) pump motor
15. 10 Nm
16. Secondary Air Injection (AIR) Pump Motor -V101-*
17. 10 Nm
18. Pressure hose
- Check for secure fitting
- To disengage, squeeze together at front
19. 10 Nm
- Secured at bracket, item 6
20. 10 Nm
21. Seal
- Always replace

Fig. 1 Secondary Air Injection (AIR) Pump Relay -J299- (arrow)







NOTE:
- Remove battery Ground (GND) strap if tools are necessary for removal of relays or control modules from the relay carrier.
- Obtain radio code for radios with anti-theft coding before disconnecting battery.
