Diagnostic Trouble Code (DTC) Erasing Memory, Ending Output

Diagnostic Trouble Code (DTC) memory, erasing and ending output

Note: All functions which could previously be performed with V.A.G 1551 can now also be carried out with the tester VAS 5051.

Prerequisites:
^ DTC memory checked.

1. Erasing DTC memory-
- Press key.





Indicated on display:
- Press keys -0- and -5-; 05 enters the "Erase DTC memory" function.





Indicated on display:
- Confirm entry with Q key





Indicated on display:
- Press key.





Indicated on display:





Indicated on display:

Note: Adhere exactly to test sequence: First check DTC, then erase

2. Ending output

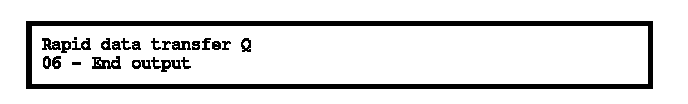

- Press keys -0- and -6-, this ends the output.





Indicated on display
- Confirm input with Q key.





Indicated on display:
- Switch off ignition.
- Disconnect Connection to V.A.G 1551 scan tool.
- Switch on ignition.

ABS warning light -K47- must go out after approx. 2 seconds.
