Lock Cylinder Housing, Removing and Installing

Lock Cylinder Housing, Removing And Installing

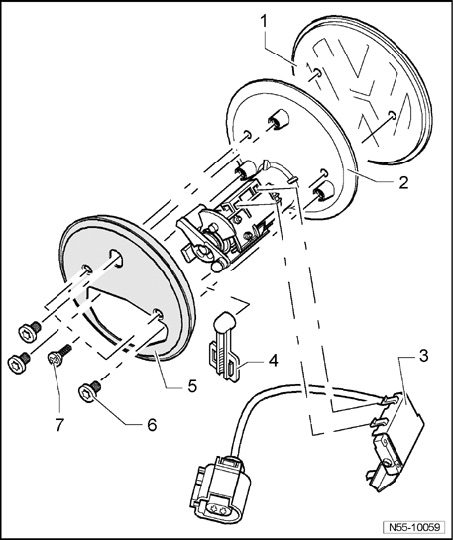

1 - VW-symbol
- consisting of emblem carrier and message
- To install VW symbol, remove protective foil and adhere to lock cylinder housing using two-sided adhesive tape

2 - Lock cylinder housing
- Removing
- Remove rear lid trim
- Disconnect connector for micro-switch / wiring harness.
- Remove operating rod at actuator lever.
- Remove screws (3x).
- Remove lock cylinder housing with VW symbol from rear lid.

- Installing:
- Installation is performed in reverse order of removal.

3 - Micro-switch
- For vehicles with central locking system
- For vehicles without central locking system
- Allocation Original parts distributor

4 - Linkage clip
- To remove operating rod, disconnect linkage clip and pull open

5 - Seal
- Attached in area of lock cylinder housing

6 - Bolt
- Qty. 3
- 4 Nm

7 - Bolt
- Qty. 2
- 0.3 Nm
