Rear Lock Carrier Cover, Removing and Installing (Jetta)

Rear Lock Carrier Cover, Removing And Installing (Jetta)

Removing

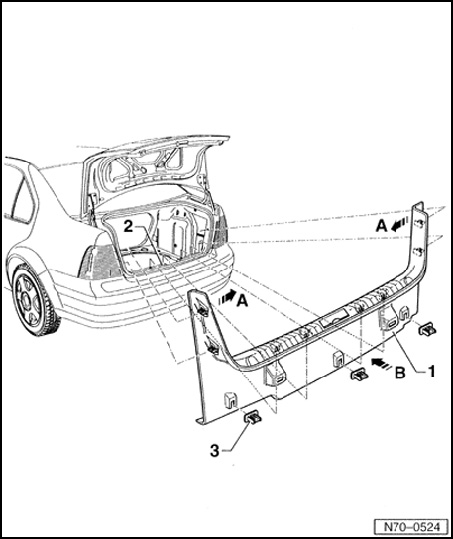

- Release lock carrier cover - 1 - first at top - arrow A - and then at bottom - arrow B - from trim panel - 2 -.







- Remove lock carrier cover - 1 - upward from trim panel.







Installing
- Installation is reverse of removal.

NOTE: Before installing, check clips -3-for damage and replace if necessary.
