Compact Disc Player (CD): Service and Repair

CD Player, Removing And Installing

CD Player can combined with "Premium V" and "Premium V - Monsoon" radios only.

CD Player also works with above radio systems that include a CD Changer. CD Changer is then manually controlled by CD Player.

The CD Player is connected to the radio. If the CD Player/radio system includes a CD Changer, the CD Changer is connected to the CD Player.

NOTE:
When installing a new CD Player in vehicle not previously equipped with one:
- Radio must be coded in order to support CD Player functions. After installing new CD Player, input appropriate radio coding using On Board Diagnostic program function 07, "Code Control Module".

Special tools, testers and auxiliary items needed.

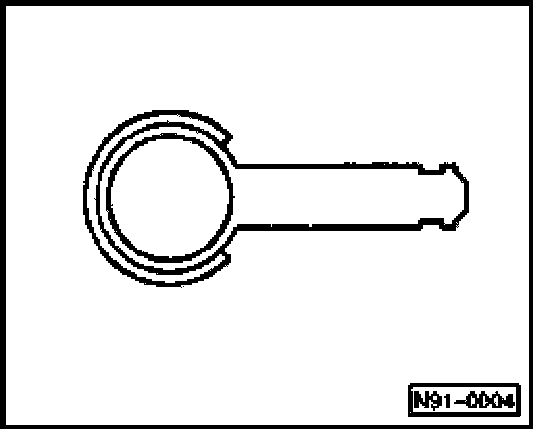

- Radio removal tool 3316 (two identical pieces).

Removing
- First remove radio.

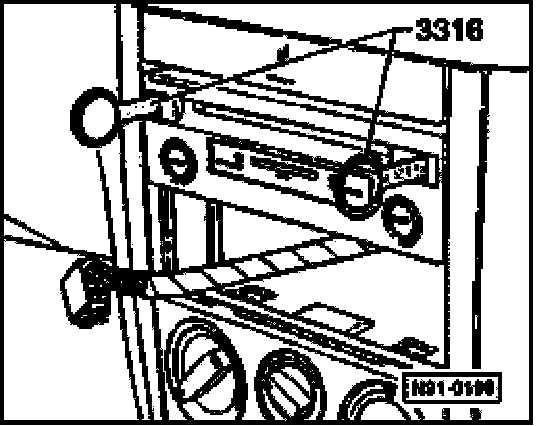

- Insert tool 3316 into openings on face of CD Player -arrow- until they are felt to engage.
- Pull CD Player from instrument panel opening using handles on tool 3316.
- Where applicable, disconnect electrical connection from CD Changer to CD Player.

NOTE:
- CD Player must be pulled straight out from opening. Do not twist or tilt tools while removing.
- To remove tool from CD Player, release locking tabs on side of CD Player when removed.

Installing
- Install in reverse order of removal.

NOTE: When installing CD Player in vehicle not previously equipped with one, remove storage bin above radio first.

- Reinstall radio.
- Input radio anti-theft security code .
- Ensure radio is coded accordingly for CD Player functions using On Board Diagnostic program function 07, "Code Control Module": Radio system "Premium V".

NOTE: Radio sound system coding must be performed to account for presence of CD Player, CD Changer (if installed), Monsoon system (where applicable) and interior sound field differences between models.
