Home >> Volkswagen >> 2005 >> Jetta Sedan (1K2) L5-2.5L (BGP) >> Repair and Diagnosis >> Locations >> Component Locations >> Control Modules, Overview >> From May 2005

From May 2005

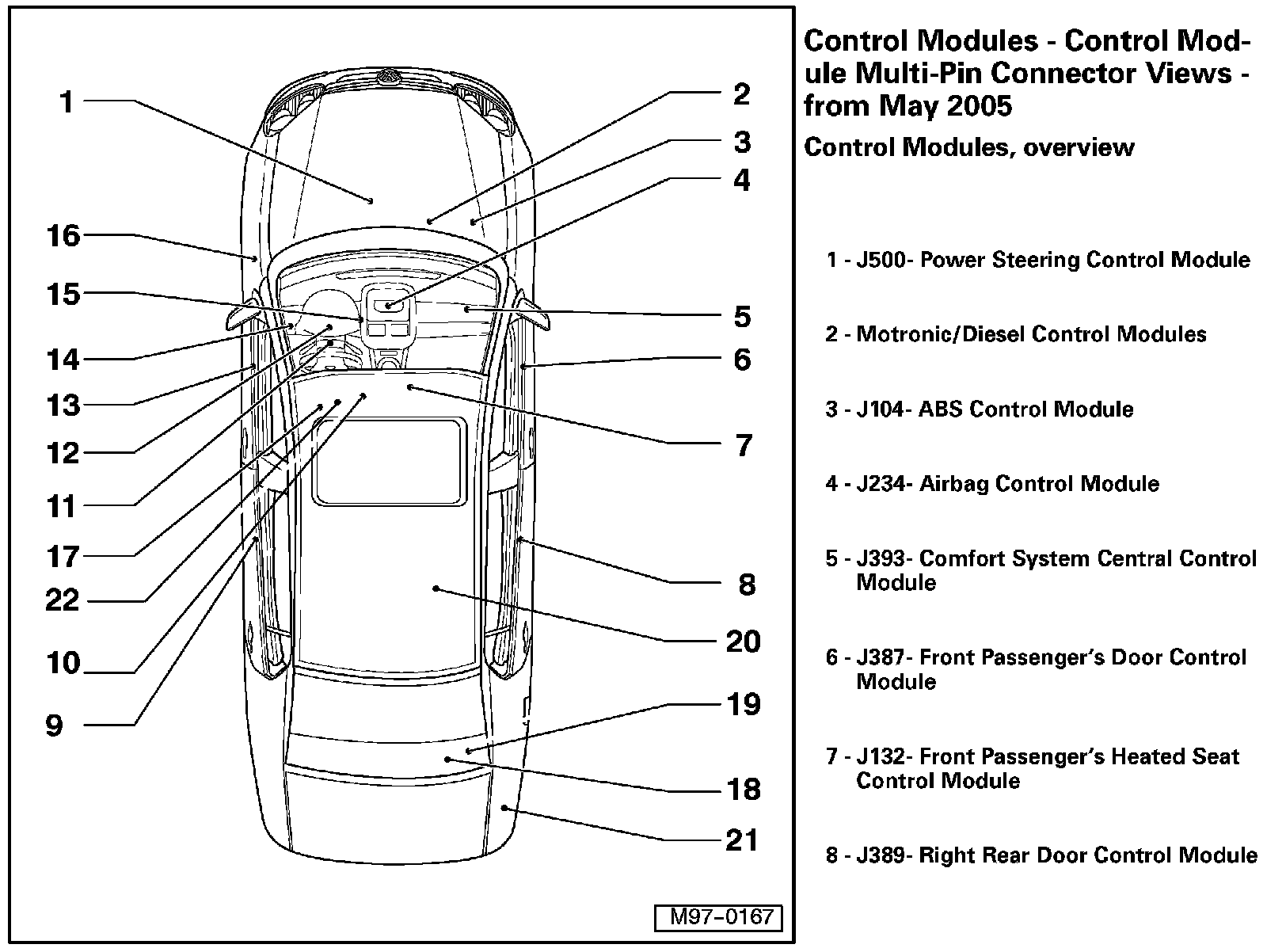

Control Modules, Overview - Part 1:

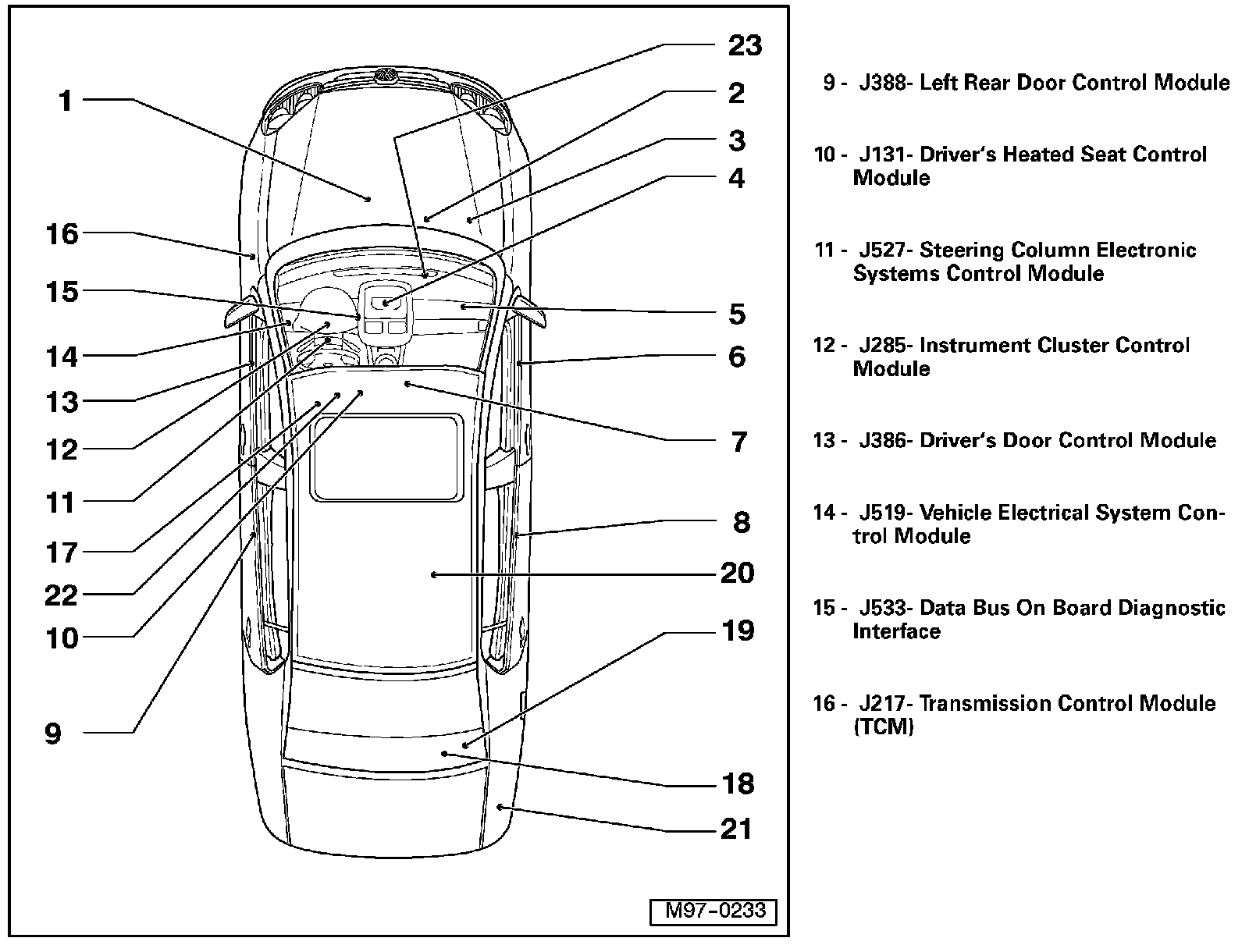

Control Modules, Overview - Part 2:

Control Modules, Overview - Part 3:
