FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2005
>>
Jetta Sedan (1K2) L5-2.5L (BGP)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Control Module
>>
From November 2004
>>

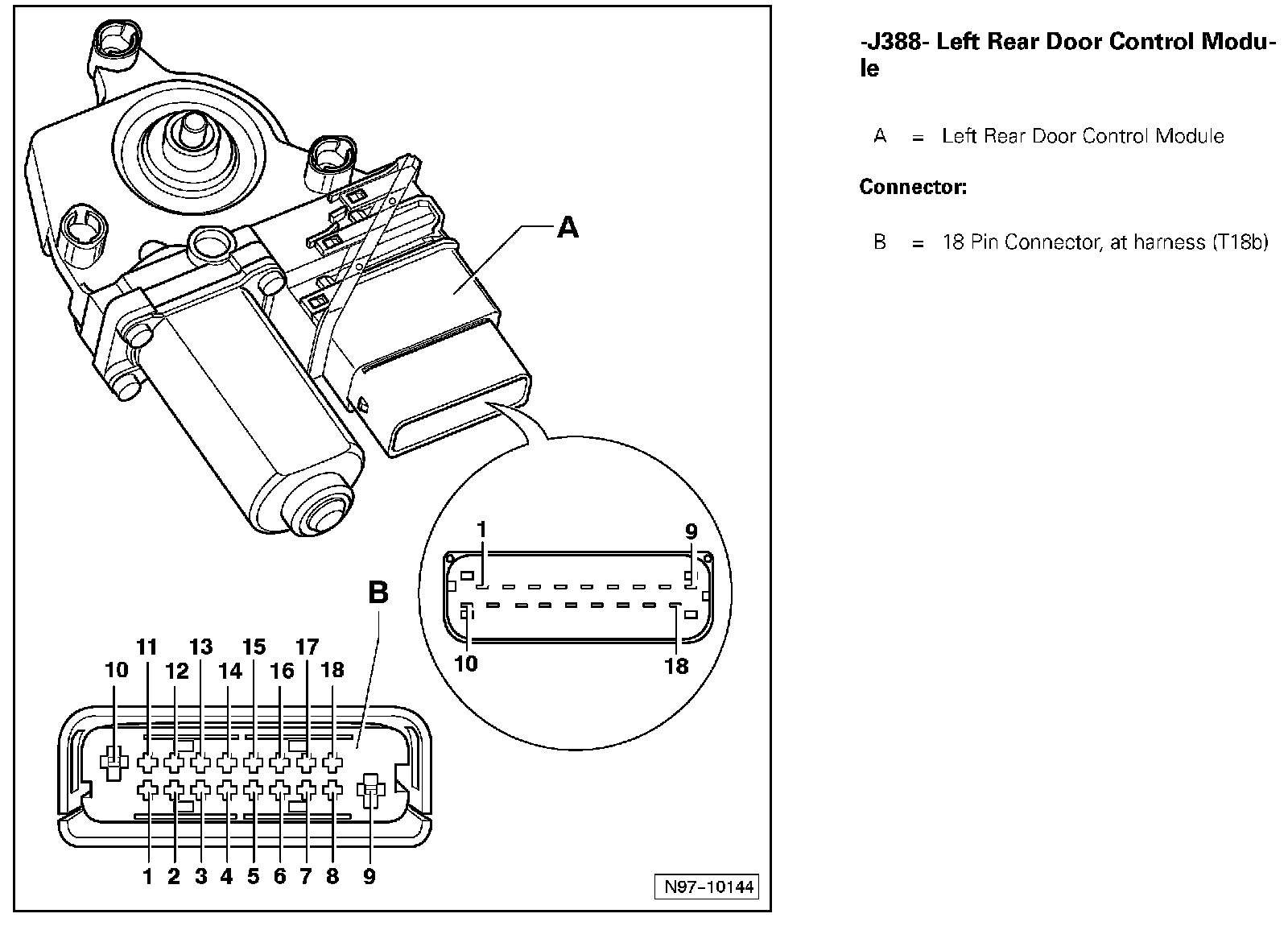

Left Rear Door Control Module J388
Left Rear Door Control Module J388
Left Rear Door Control Module J388 - Part 1:
Left Rear Door Control Module J388 - Part 2:
