Home >> Volkswagen >> 2005 >> Jetta Sedan (1K2) L5-2.5L (BGP) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Control Module >> From November 2004 >> Front Passenger's Door Control Module J387

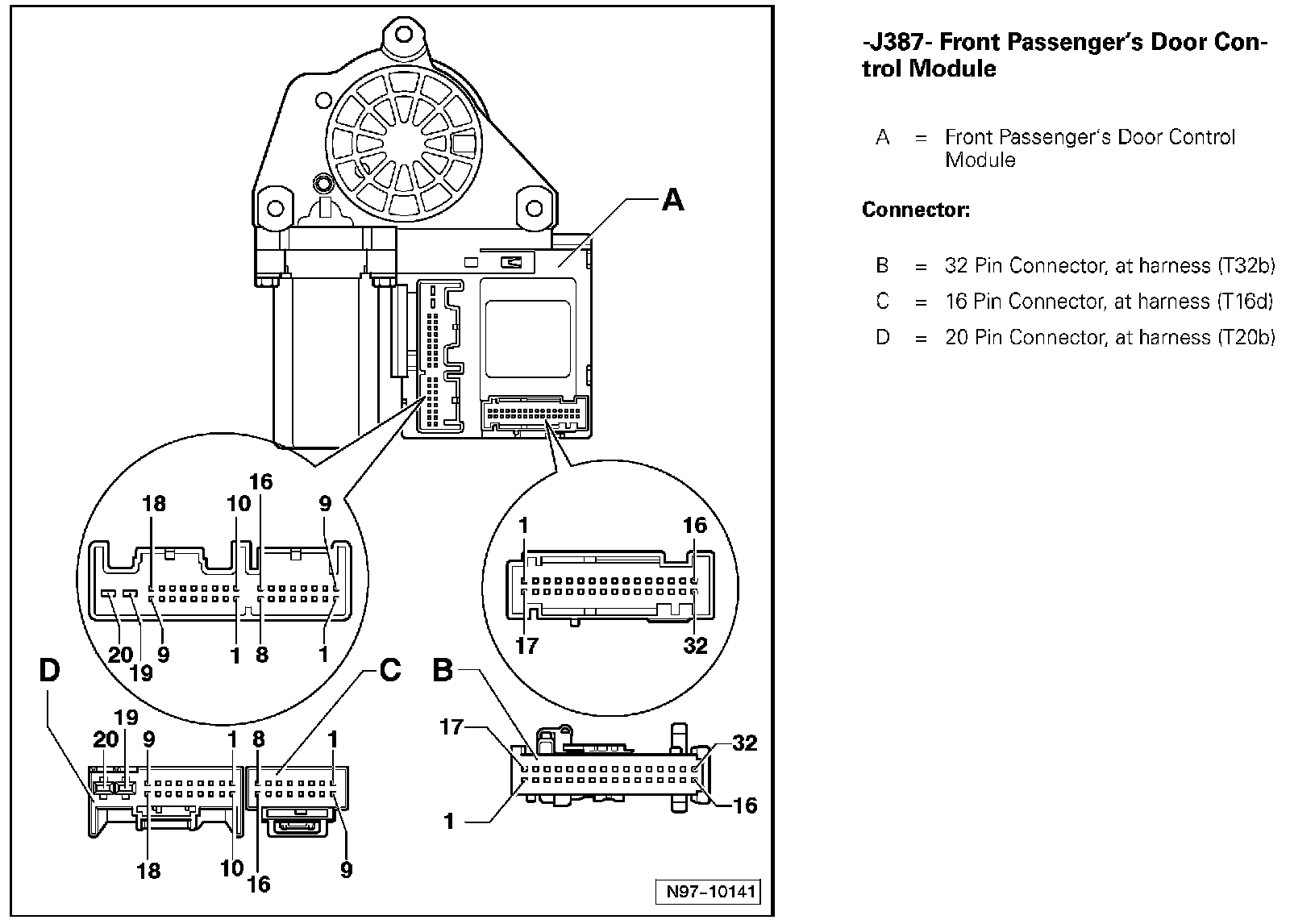

Front Passenger's Door Control Module J387

Front Passenger's Door Control Module J387 - Part 1:



Front Passenger's Door Control Module J387 - Part 2:
