ABS Control Module (Models With ABS/EDL/ASR) J104

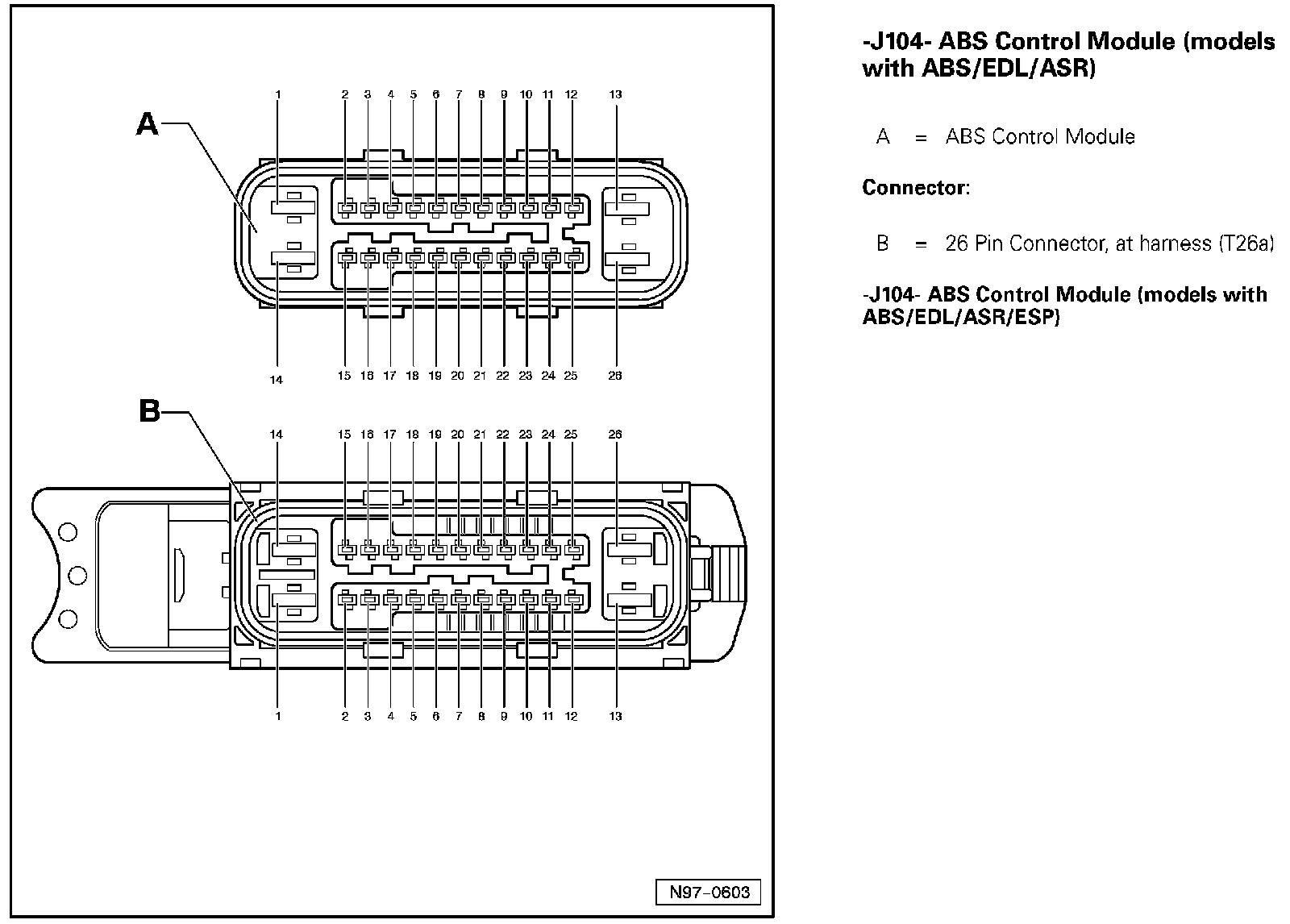

ABS Control Module (models With ABS/EDL/ASR) J104 - Part 1:

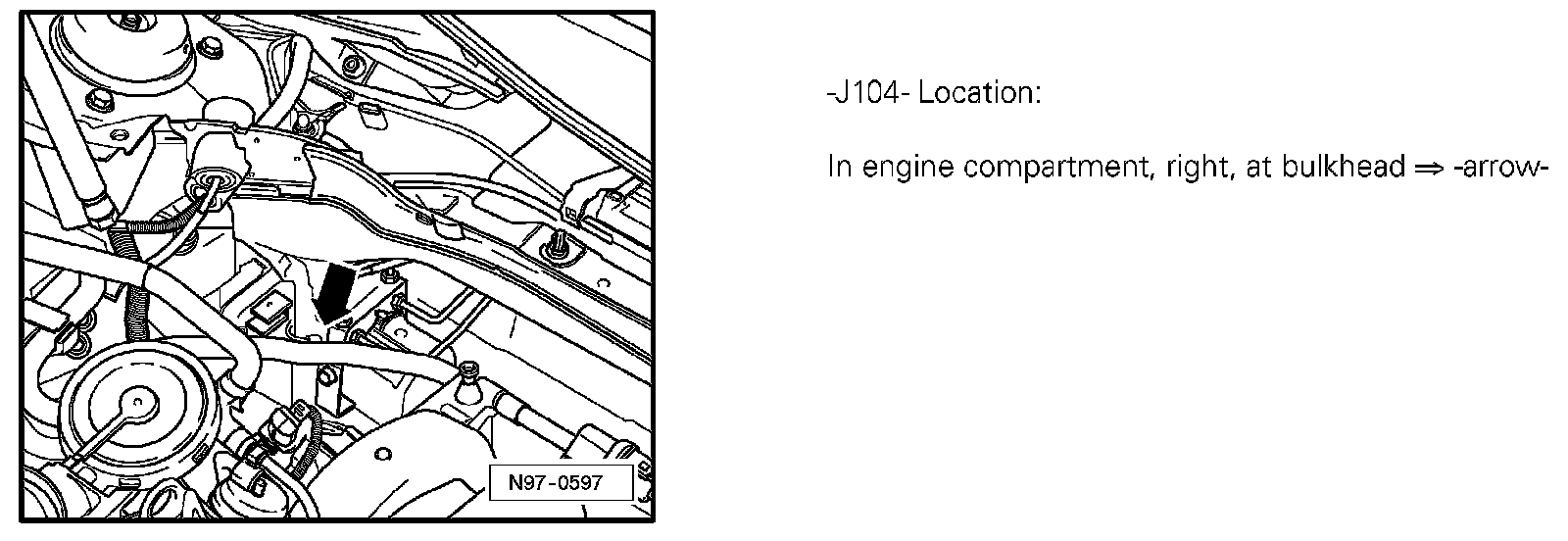

ABS Control Module (models With ABS/EDL/ASR) J104 - Part 2:
