Tie rod ball joints, modified
The manufacturing process for tie rod ball joints has been optimized. This has resulted in changes to the external shape and length of the internally threaded shaft.

It was necessary to modify the tie rods to match tie rod ball joints, go to Tie rods, modified.

Was introduced in the Wolfsburg factory from;

Vehicle identification No. 1J WW 085 662;
in the Mosel plant from;

Vehicle identification No. 1J WP 050 833;
in the Bratislava plant from;

Vehicle identification No. 1JWD039151;
in the Brussels plant from; 1J WB 062 360

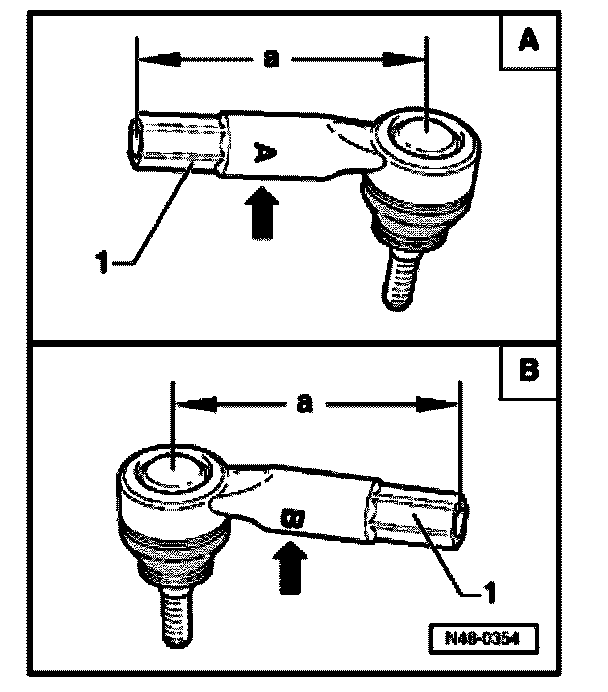

The modified tie rod ball joints can be recognized by the following features.





A - Right-hand tie rod ball joint

1 - Hex on internally threaded shaft, wrench size 19 mm

Dimension - a -; 94 ± 0.5 mm Identification - A - for right

B - Left-hand tie rod ball joint

1 - Hex on internally threaded shaft, wrench size 19 mm

Dimension - a -; 94 ± 0.5 mm Identification - B - for left

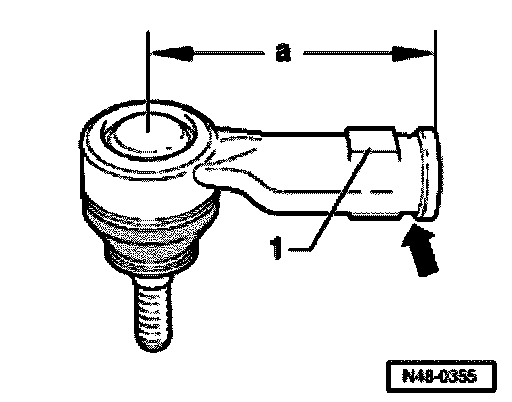

Identifying features for the previous tie rod ball joint

1 - Flats for wrench on shaft, marked with - R - or - L -

Wrench size 22 mm Dimension - a -; 74 ± -1 mm The shaft - arrow - is round

CAUTION: This tie rod ball joint must not be installed to a tie rod which has a length of - a - = 318.9 mm!
