ABS ITT Mark 20 IE

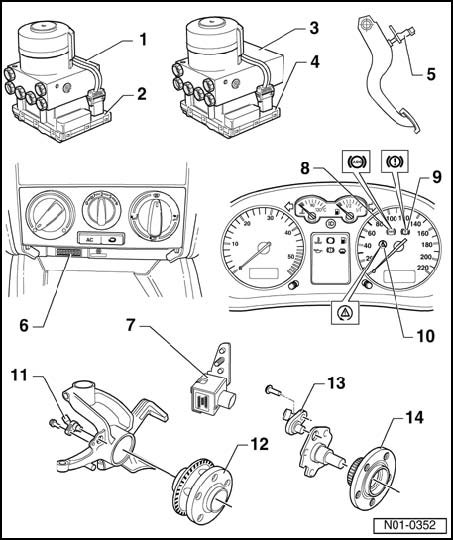

Electrical/electronic components and locations





1- ABS hydraulic unit -N55-
^ Located on left of engine compartment.
^ The ABS Hydraulic Pump -V64- and valve block must not be separated from one another
^ When changing the hydraulic unit, always seal the old part with the plugs from the repair set Part No. 1 H0 698 311 A





2- ABS control module (w/EDL) -J104-
^ Location: on hydraulic unit on left of engine compartment
^ Do not disconnect connector before successfully completing OBD. Switch ignition off before separating connection.





3- ABS/EDL and ABS/EDL/ASR hydraulic unit -N55-
^ Located on left of engine compartment.
^ The ABS hydraulic pump -V64- and valve block must not be separated from one another
^ When changing the hydraulic unit, always seal the old part with the plugs from the repair set Part No. 1 H0 698 311 A





4- ABS/EDL and ABS/EDL/ASR Control Module -J104-
^ Location: on hydraulic unit on left of engine compartment
^ Do not disconnect connector before successfully completing OBD. Switch ignition off before separating connection.
