Shift Lever, Shift Lever Bearing, Pivot Rod and Shift Rod, Servicing

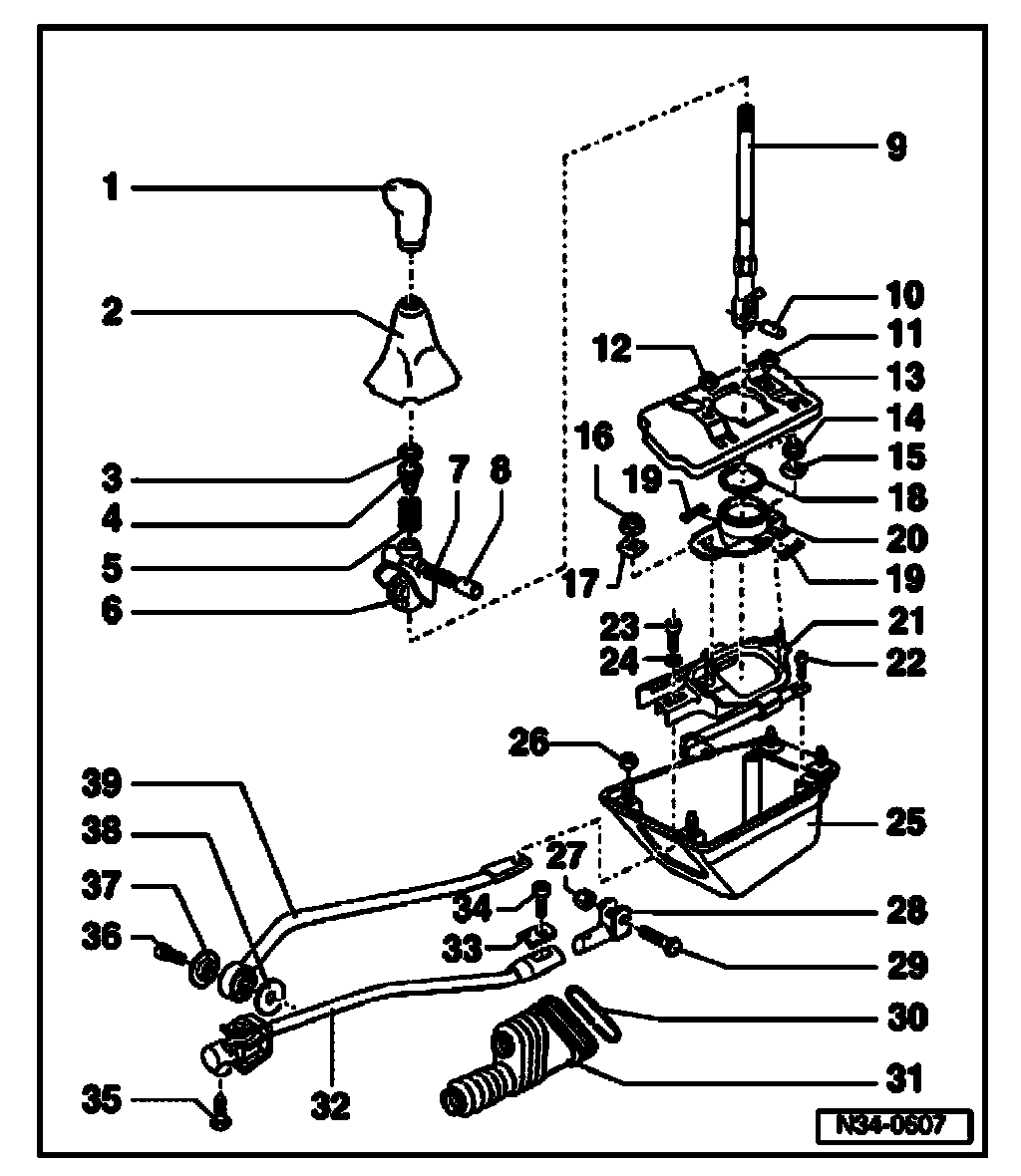

Shift lever, shift lever bearing, pivot rod and shift rod, servicing, 01A, 5 SPD. M/T (AWD)

Note:
^ Lubricate beating areas and slide surfaces with polycarbamide grease G 052 142 A 2.





1. Shift knob
^ Remove and install together with shift lever boot

2. Shift lever boot
^ Separate from shift knob
^ Before installing, engage with shift knob

3. Circlip
^ Always replace

4. Spacer bushing
5. Compression spring
6. Ball stop
^ Insert compression spring and bushing into ball stop and thus install shift lever with compression spring and bushing arranged at right in direction of travel.

7. Compression spring
8. Socket
^ Installation position: Rounded side points toward shift lever

9. Shift lever
^ Installs into ball housing only in one position

10. Spacer tube
11. Hex nut, tighten to 10 Nm.
12. Hex nut, tighten to 10 Nm.
13. Cover
14. Hex nut, tighten to 25 Nm.
15. Connecting piece
16. Hex nut, tighten to 25 Nm.
17. Connecting piece
18. Circlip
^ Always replace
^ Remove before removing ball stop

19. Buffer
20. Ball housing
21. Shift lever bearing
22. Socket head bolt, 10 Nm
23. Socket head bolt, 25 Nm
24. Washer
25. Shift mechanism housing
26. Hex nut, tighten to 10 Nm.
27. Hex nut, tighten to 10 Nm.
^ Self-locking
^ Always replace

28. Shift fork
29. Bolt
30. Tensioning ring
31. Boot + Remove before removing and installing catalytic converter and heat shield at front

Note:
^ Carefully pull boot over shift rod
^ Place boot on markings of shift rod and pivot rod

32. Shift rod
^ With shift coupling

33. Clamping piece
34. Socket head bolt, 25 Nm
35. Hex bolt, 23 Nm
^ Self-locking
^ Always replace

36. Socket head bolt, 40 Nm
37. Washer
^ Rounded side faces pivot rod

38. Washer
39. Pivot rod

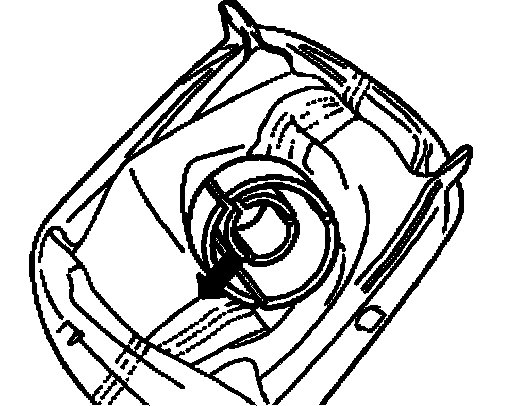

Separate shift lever boot from shift knob
^ Turn inner side of shift lever boot toward outside.
^ Carefully press rib in direction of - arrow - using a screwdriver, pull off shift knob while doing so.
