Installed Position of Manual Transmission

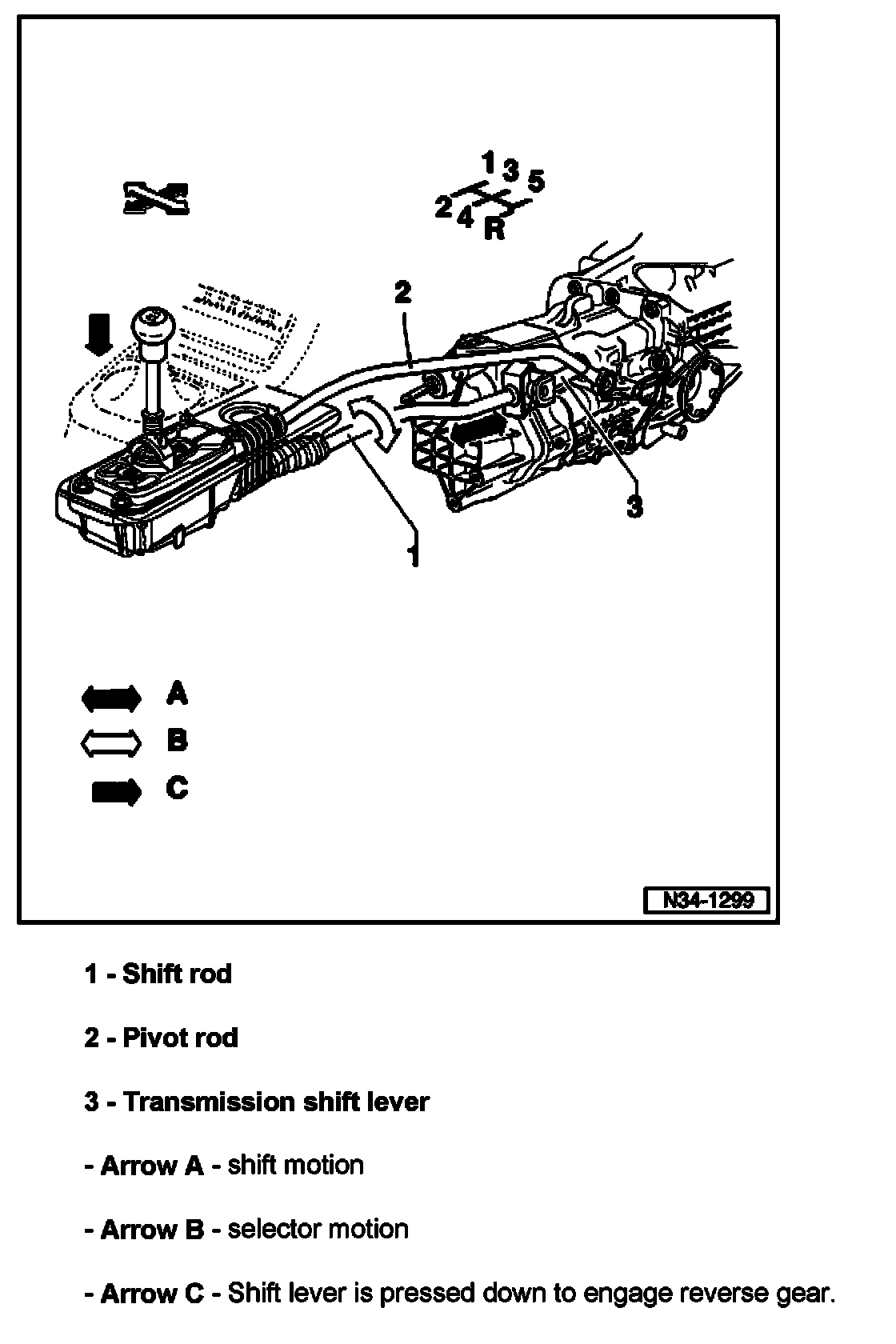

Installed position of manual transmission, 012/01W, 5 SPD. M/T





1. Shift rod
2. Pivot rod
3. Transmission shift lever
- Arrow A - shift motion
- Arrow B - selector motion
- Arrow C - Shift lever is pressed down to engage reverse gear.
