Reinforcement Measures As of Transmission Manufacture Date 17 08 8 In Area For 4TH Gear

Reinforcement measures as of transmission manufacture date 17 08 8 in area for 4th gear, 012/01W, 5 SPD. M/T

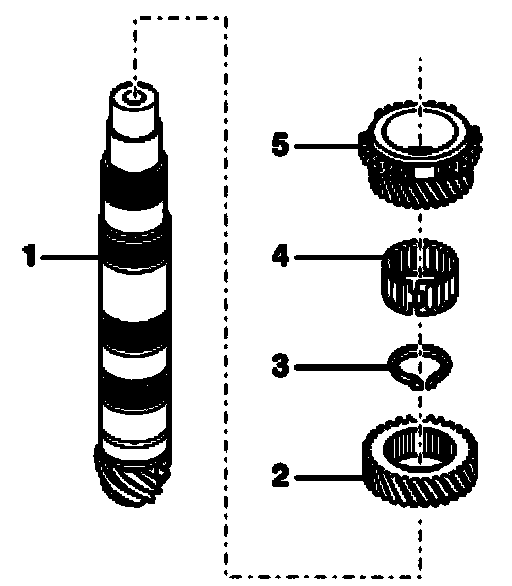

The following parts are affected by this modification:
1. Drive pinion, distinguishing characteristics
2. 4th gear, distinguishing characteristics
3. Circlip, distinguishing characteristics
4. Needle bearing, distinguishing characteristics
5. 5th gear, distinguishing characteristics

Note:
^ Transmission parts with reinforced 4th gear must not be installed together with transmissions without reinforced 4th gear.

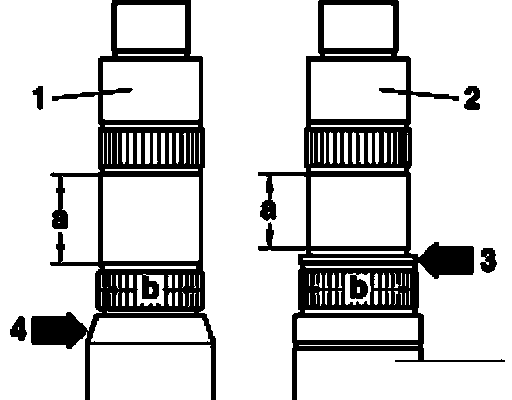

Differentiation of drive pinions

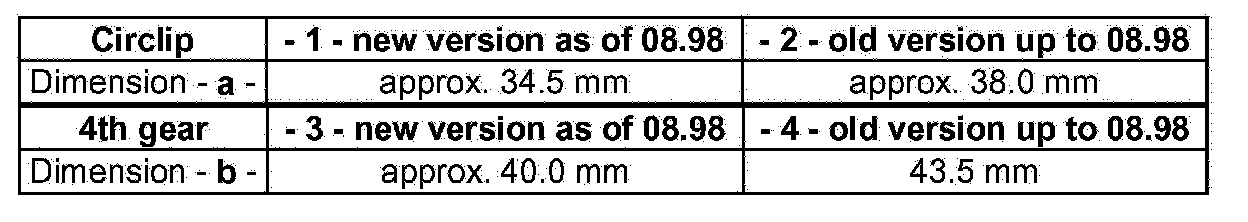

Differentiation of circlips and gears

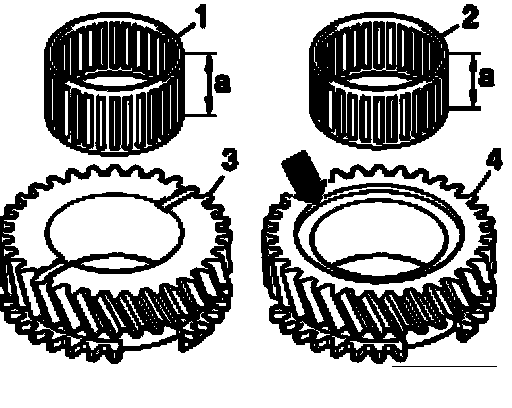

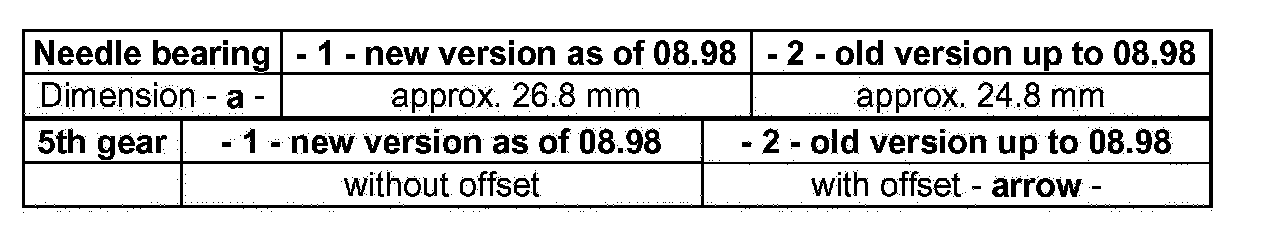

Differentiation of needle bearings and 5th gear
