Position of Shims

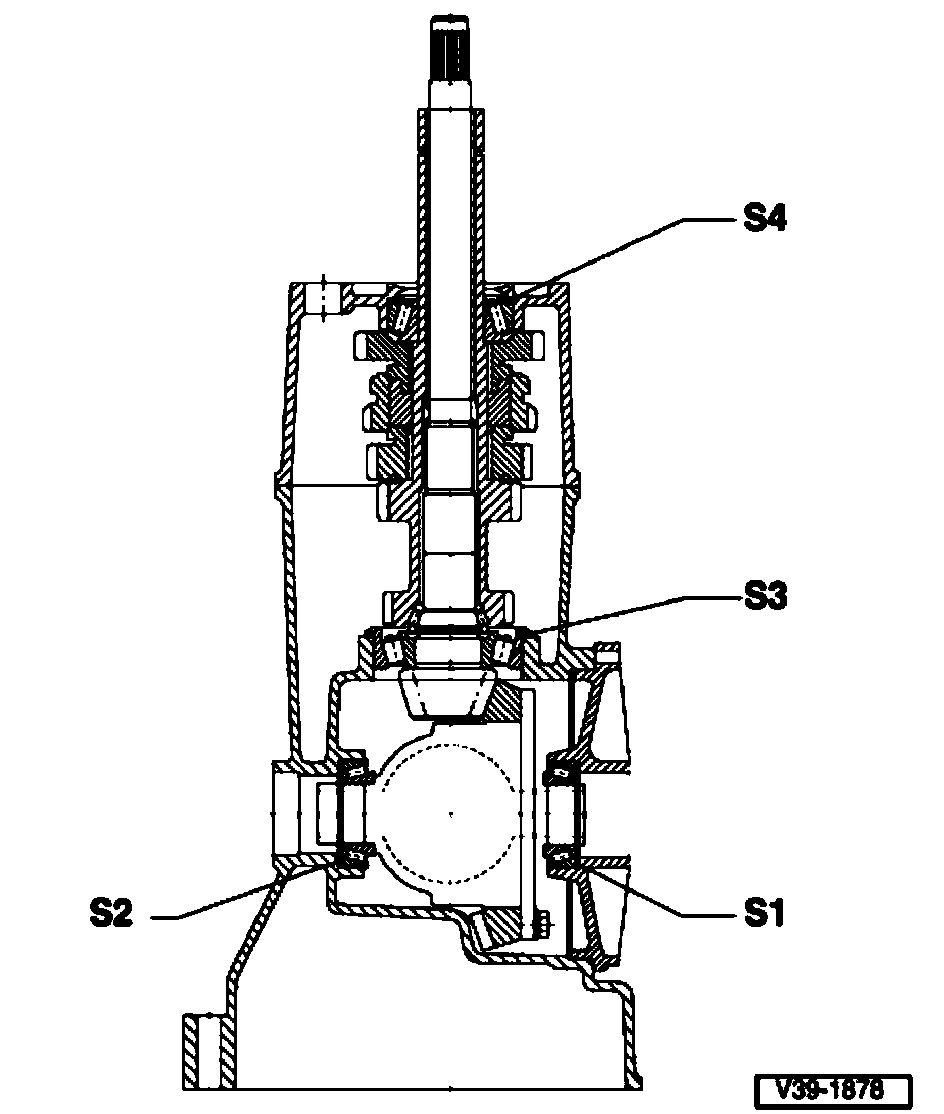

Position of shims





S1 - Shim for ring gear in transmission housing cover
S2 - Shim for ring gear in transmission housing
S3 - Shim for pinion shaft in transmission housing
S4 - Shim for pinion shaft in gear carrier
