Transmissions With Hydraulic Control E18/2

Transmissions with hydraulic control E18/2
Removing
- Remove valve body.

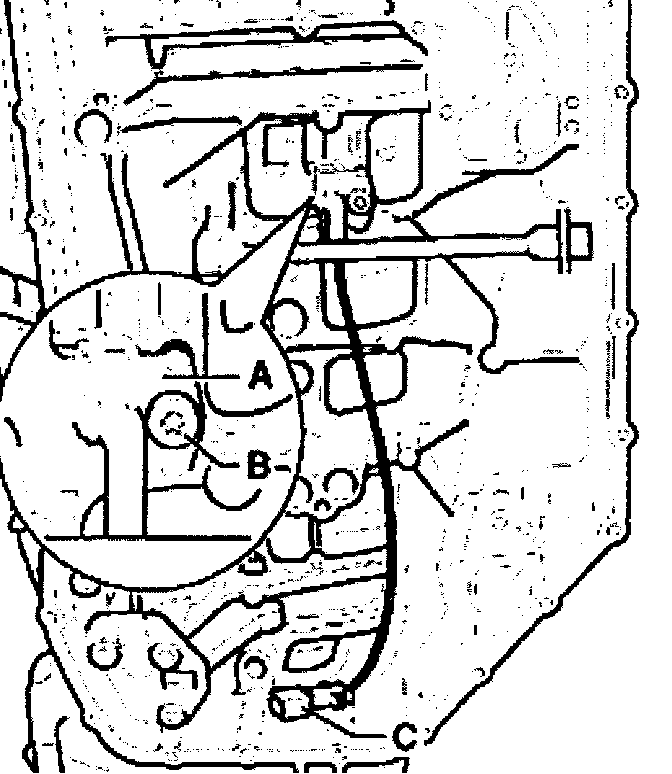

- Unbolt sensor for transmission RPM signal -A- from transmission.

Installing
- Attach sensor for transmission RPM -A- to transmission with bolt-B- and tighten.
- So that the wire does not become trapped when installing the valve body, route the wire with connector -C- according to the diagram.
- Install valve body.
- Fill with ATF; check ATF level and top up.
