Sensor For Transmission RPM -G182-

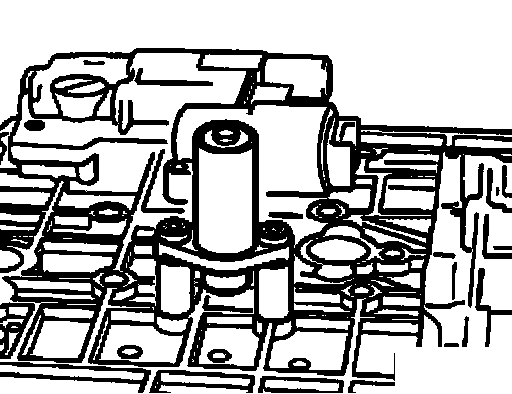

Fig. 10 Sensor for transmission RPM -G182-, 01V, 5 SPD. A/T (OBD)

Fig. 10 Sensor for transmission RPM -G182-:

Installation location: On transmissions with hydraulic regulation -E17-, the sensor for transmission RPM (inductive sensor) is secured to the underside of the valve body (see illustration). On these transmissions the sensor is an inductive sensor.





On transmissions with hydraulic regulation -E18/2-, the sensor for transmission RPM -A- is secured behind valve body at transmission housing. On these transmissions the sensor is a hall effect sensor.
