Sensor For Transmission RPM -G182-

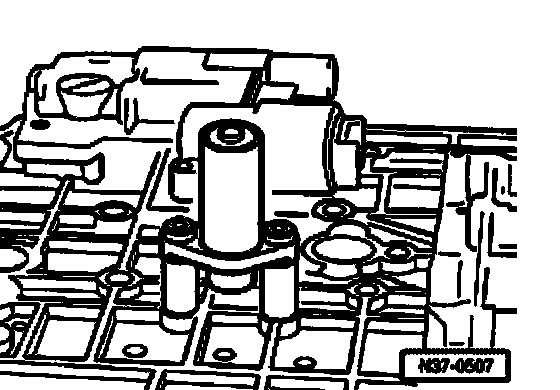

Fig. 10 Sensor for Transmission RPM -G182-, 01V, 5 SPD. A/T (FWD)





Location:
The transmission input speed sensor is located on transmissions with hydraulic control Type E17 on the underside of the valve body (see illustration). For this type of transmission, the sensor is an inductive sender.

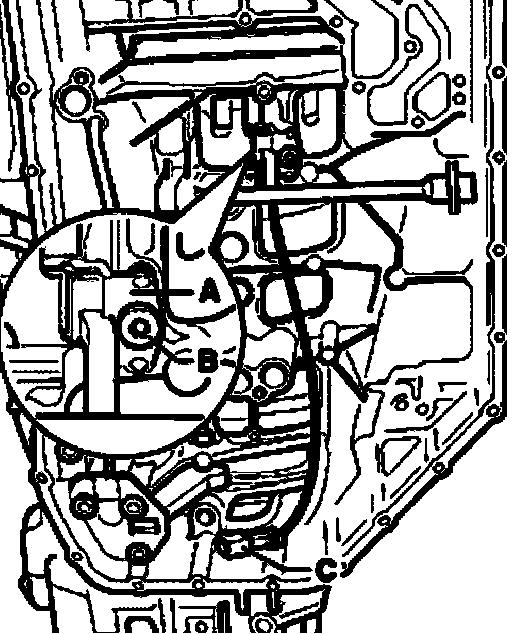

On transmissions with hydraulic control -E18/2, the transmission input speed sensor -A- is attached to the transmission behind the valve body. For this type of transmission, the sensor is a Hall sender.
