Removing and Installing

Selector mechanism, removing and installing

Removing
- Remove selector lever handle.
- Pull up pull rod and hold in this position while shifting selector lever into position "P".
- Switch off ignition.
- Remove central console.
- Carefully lever off retaining tabs -arrows A- (Qty. 4) from above.





The four retaining tabs -arrows B-, visible from above, must not be removed from the printed circuit. The printed circuit will otherwise be damaged.
If the retaining tabs are damaged -arrows A or B-, replace complete cover.
- Remove complete selector mechanism cover upward.

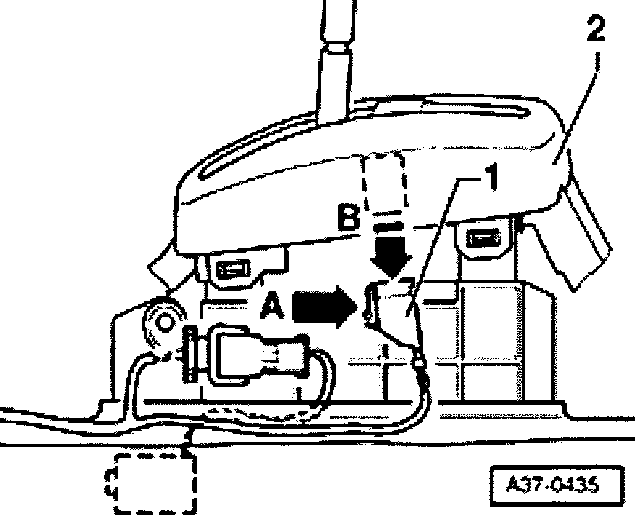

- Press in release tab -arrow A- on connector -1- and pull connector out of cover -2- in direction of arrow -B-.

Installing
Install in reverse order of removal but note following:

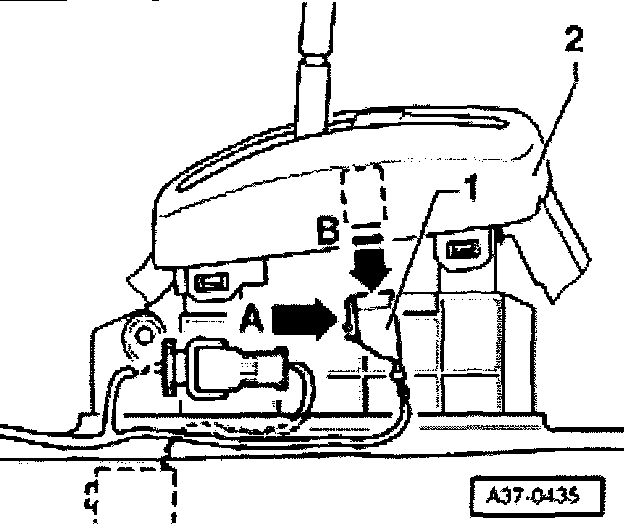

- Push connector-1- in opposite direction of arrow -B- in cover -2- before engaging in selector mechanism.





- Fit cover carefully to selector mechanism and lock in place at retaining tabs -arrows A- (Qty 4)
- If retaining tabs are damaged -arrows A or B-, replace complete cover.
- Install central console.
