Assembly Overview

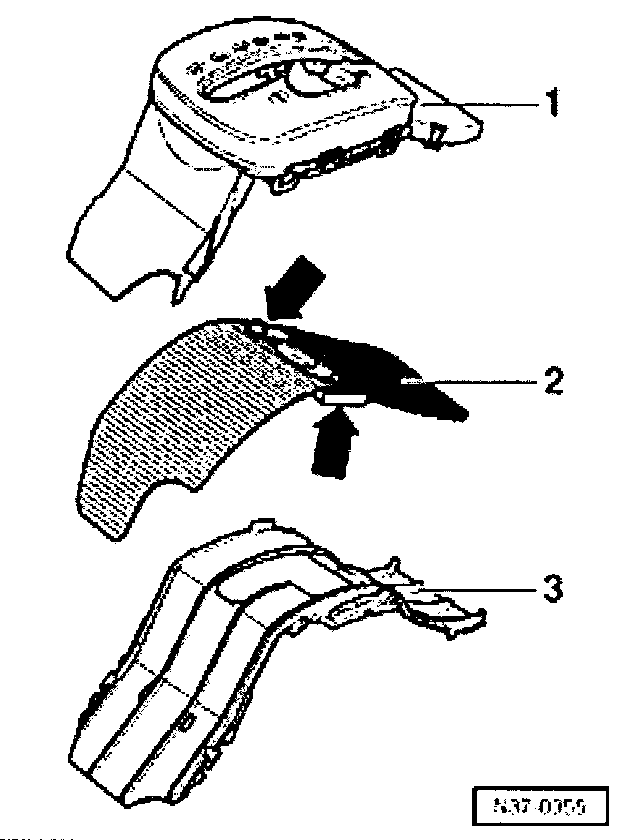

Selector mechanism cover (assembly overview), disassembling and assembling





1. Trim molding
- With trim plate and symbol panel
- Available only as complete unit
2. Cover strip
- With 2 solenoids -arrows- for Tiptronic switch -F189- and gear indicator
- Solenoids must be securely mounted to cover strip
3. Guide
- Guides the cover strip
