Selector Lever Handle With Red-Brown Plastic, Removing and Installing

Selector lever handle with red-brown plastic, removing and installing, 01V, 5 SPD. A/T (FWD)
- Pull on handle to remove, taking care not to press button while pulling.

Note: If the button on the handle is accidentally pressed, carefully pull it out or blow it back out with compressed air.

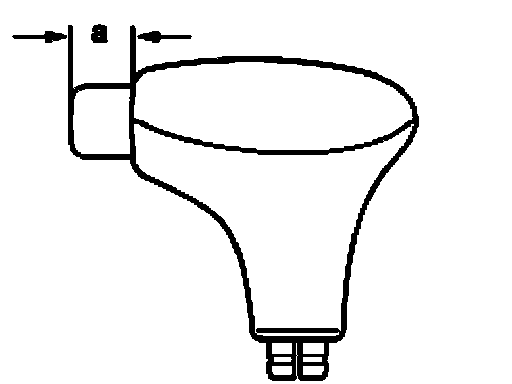

- Before installing, be absolutely sure that button protrudes at least 10 mm (-a-).
- By hand, slowly pull button out past detectable pressure point so that it does not go back in.
- To install, position lever at "D" and push handle onto selector lever.
