01V, 5 SPD. A/T (FWD)

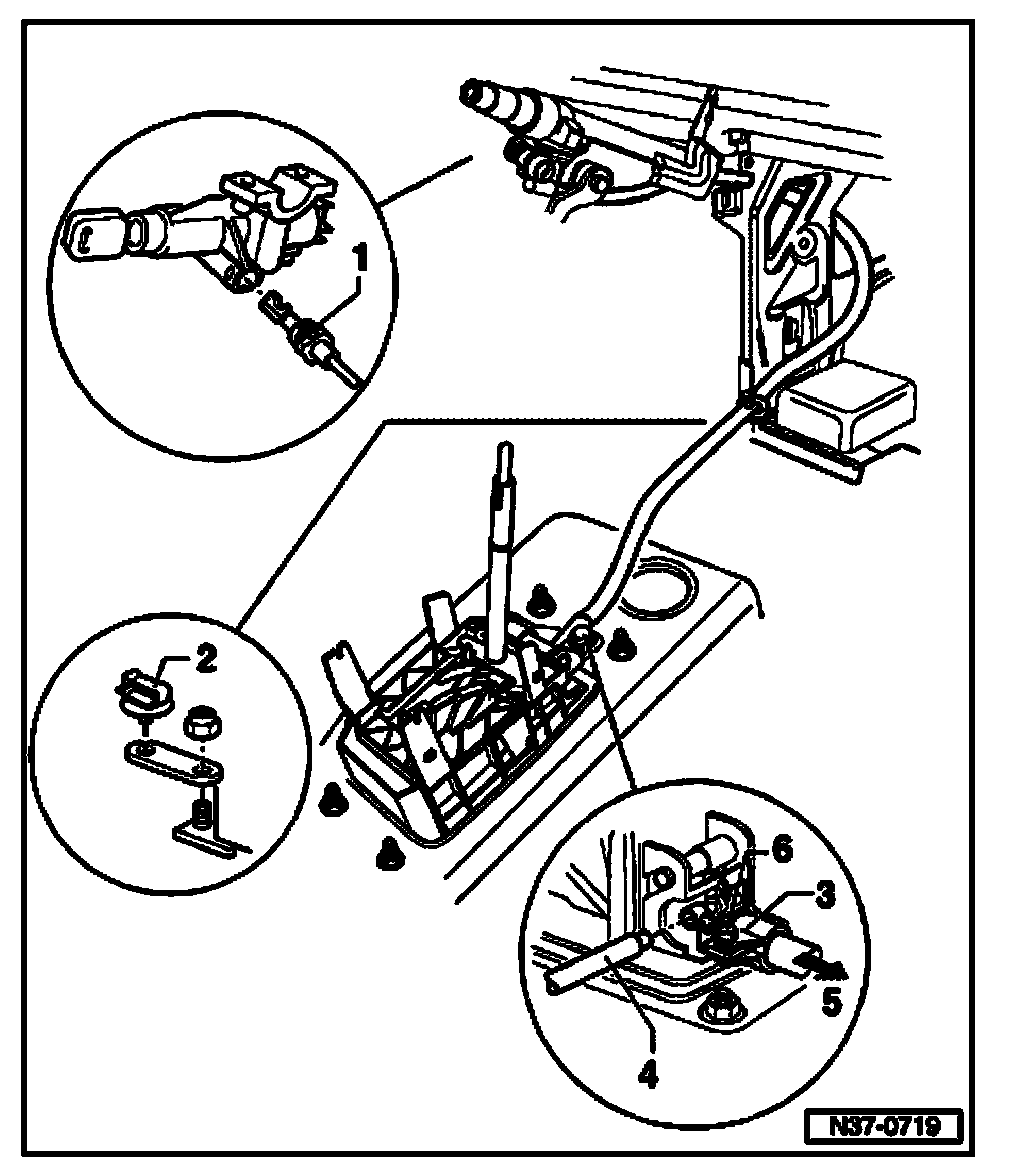

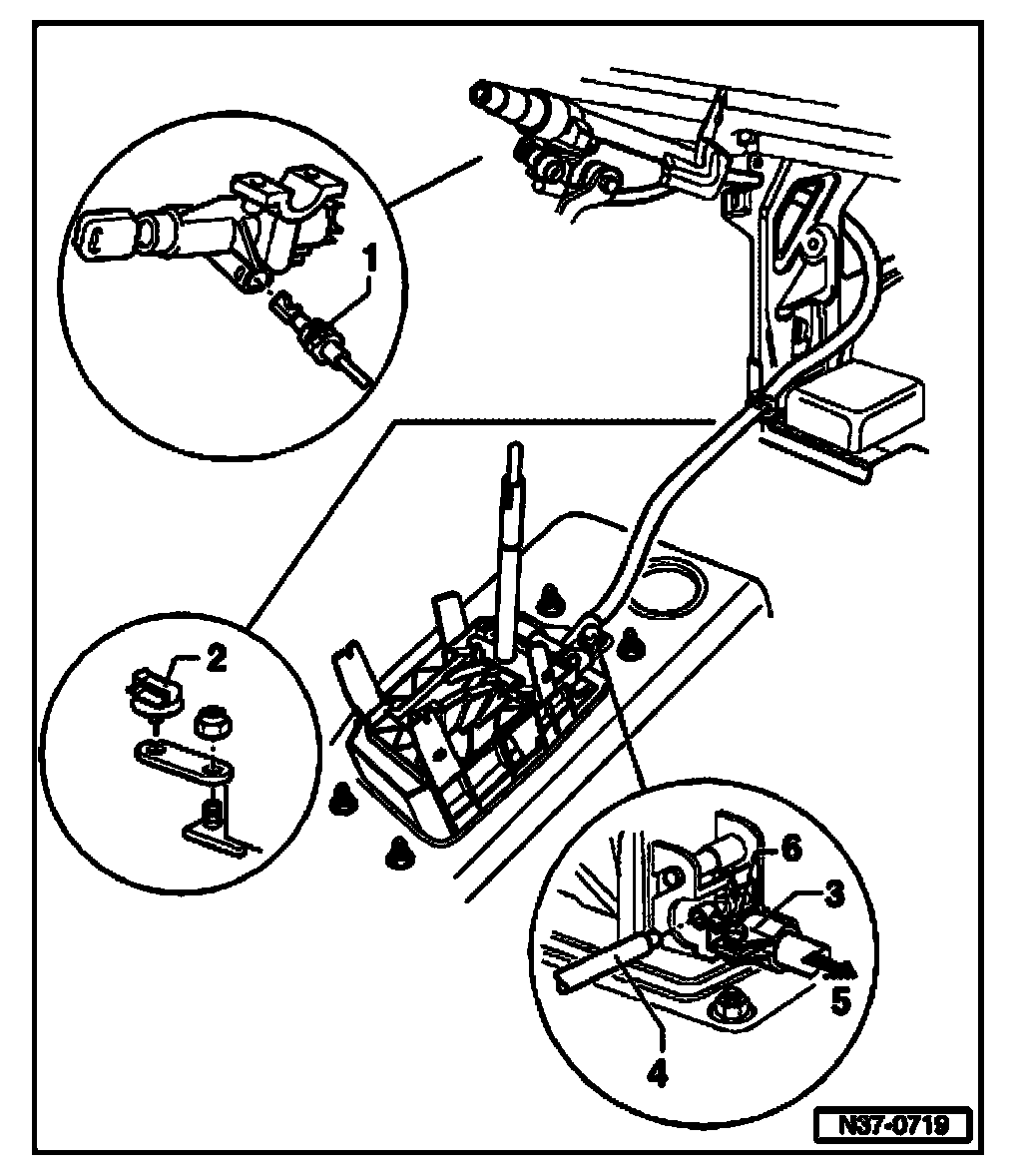

Locking cable, adjusting, 01V, 5 SPD. A/T (FWD)





- Loosen bolt -6-.
- Must be able to move support bracket -3- by hand in direction of arrow -5-.
- Move steering column down and to rear.
- Install setting bar 3352 A -item 4- between locking lever and locking cable eye.
- To compensate for play, pull support bracket in direction of arrow -5- onto stop and tighten bolt -6- to 10 Nm.





- Remove setting bar.
- Check ignition key withdrawal lock after each adjustment of locking cable.
- Install steering column switch.
- Install steering wheel with airbag.
- Installing center console and extension.





- Install selector lever handle.
- Connect battery Ground strap.
- On vehicles with coded radio unit, activate code.
- Initialize electric windows, adjust clock.
