Overview of Power Transfer, All Wheel Drive (AWD)

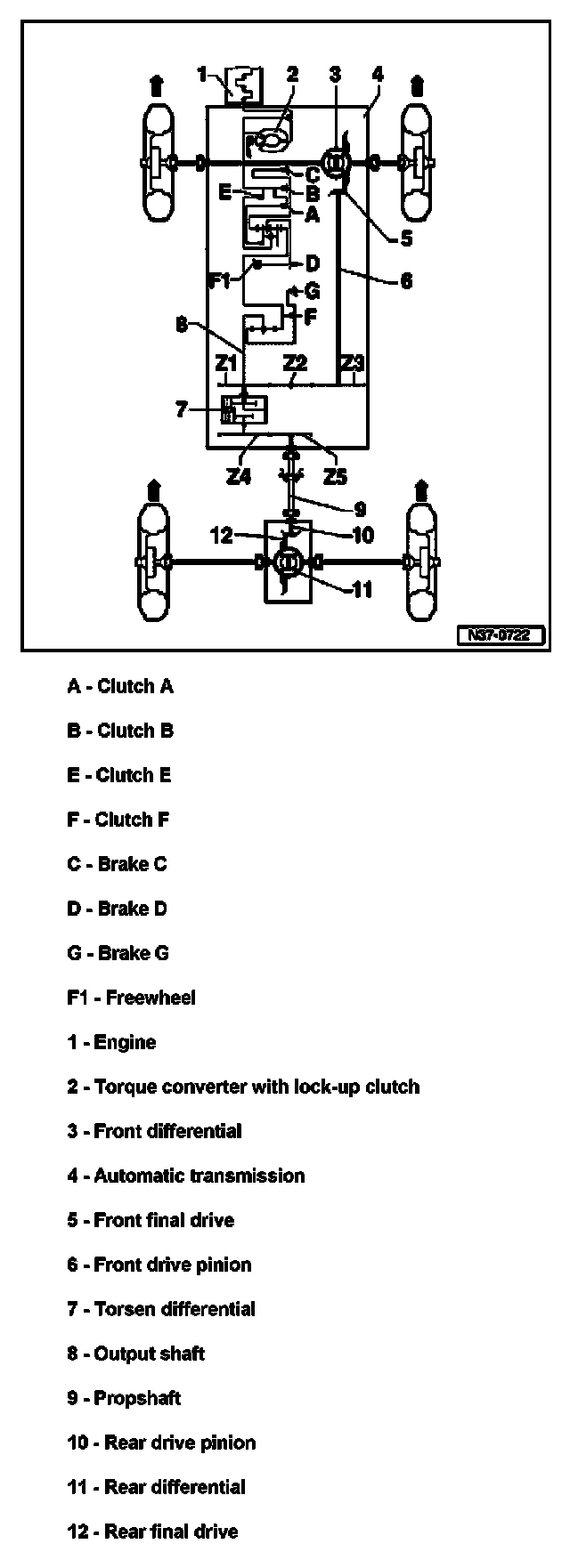

Overview of power transfer, All Wheel Drive (AWD), 01V, 5 SPD. A/T (AWD)





Z1, Z2 and M = spur gears of front intermediate drive.

Z4 and Z5 = spur gears of rear intermediate drive.

- Arrows - point in direction of travel.
