ATF Lines and ATF Cooler, Cleaning

ATF lines and ATF cooler, cleaning, 01V, 5 SPD. A/T (FWD)
If there is dirt in the ATF, blow through the ATF cooler and ATF lines with compressed air (not more than 10 bar) before installing transmission.

WARNING: Wear protective glasses.

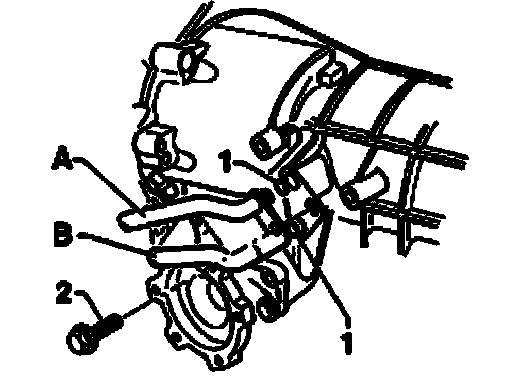

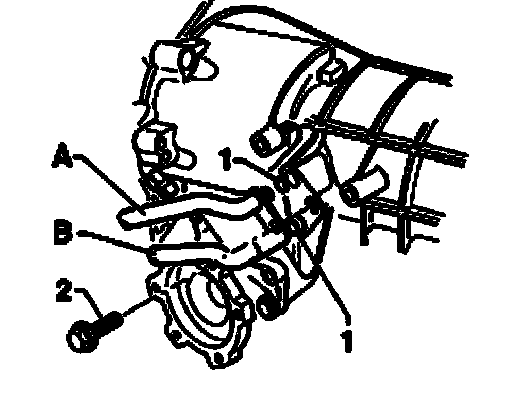

^ Release bracket for rigid ATF lines on transmission.





^ Unscrew bolt -2-.
^ Pull ATF lines off transmission.
^ Connect a hose to ATF pipe -A- and secure with a hose clamp. Hang other end of hose in a suitable container.





^ Clear ATF line -B- with compressed air.
^ Change hose from ATF pipe -A- over to ATF pipe -B- and repeat sequence.
^ Replace O-rings -1-.
^ Moisten O-rings with ATF
^ Insert ATF lines completely by hand onto stop in transmission.
^ Do not tighten bolt until ATF lines are completely inserted.
^ Check and top up ATF level.
^ When checking ATF level, check ATF line connections -A- and -B- for leaks.
