Vehicles With All Wheel Drive

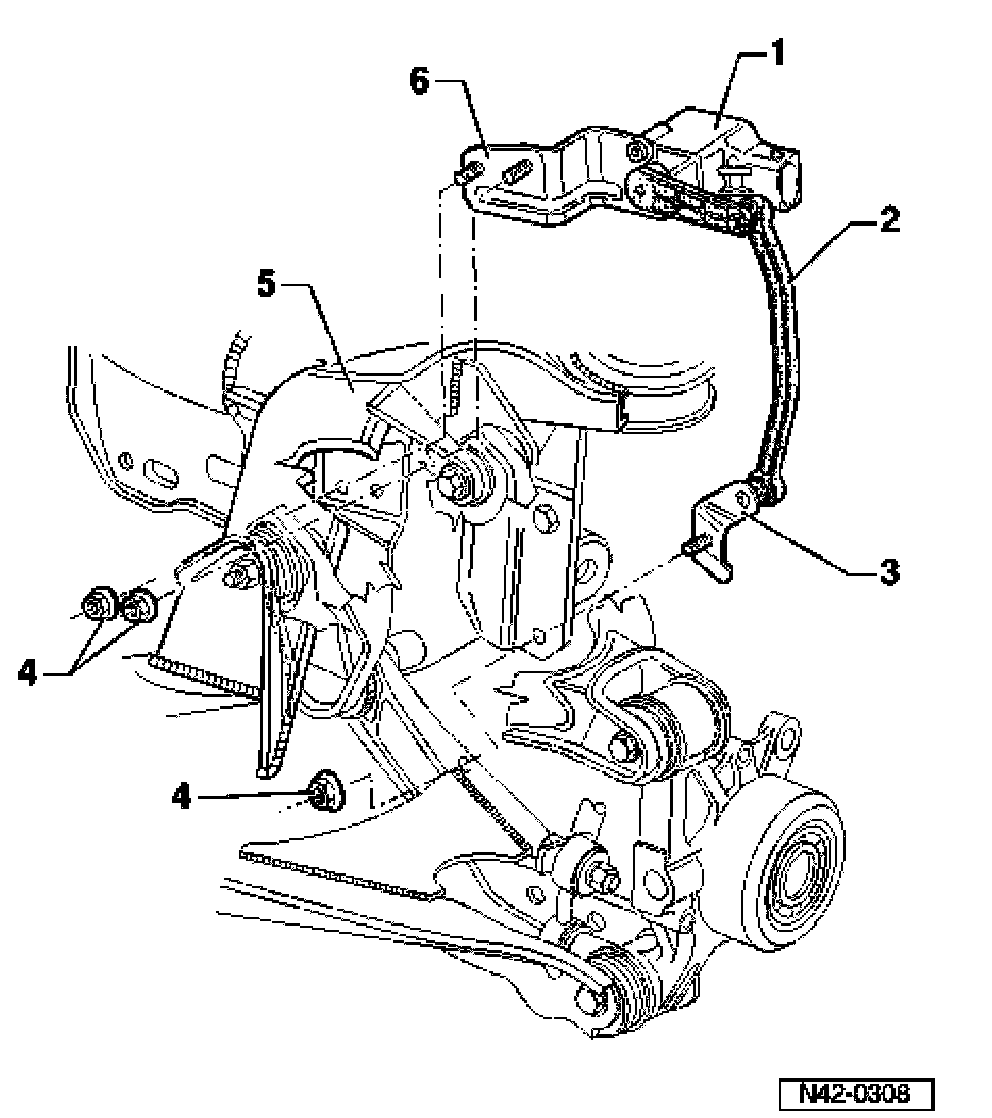

Left rear level control system sensor -G76-on rear axle, vehicles with all wheel drive, checking

^ General information, Refer to Lighting and Horns, Headlamp Alignment Sensor, Description and Operation
^ Headlight basic settings
^ Perform setting in "Guided fault finding" using VAS 5051.

Note: To do so, you must enter by using the "Go to" key in "Function/Component selection".

1. Left rear level control system sensor -G76
^ Checked electrically via self-diagnosis
^ When complaints are received
^ Perform basic setting in "Guided fault finding" using VAS 5051.

Note: To do so, you must enter by using the "Go to" key in "Function/Component selection".

2. Coupling rod from left rear level control system sensor, rear left -G76
^ Do not remove connecting link off ball head!
3. Bracket
4. Self-locking nut, 10 Nm
^ Replace each time after removing
5. Subframe
6. Bracket
