Handling Instructions

Handling Instructions


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio.


NOTE:
- Battery posts and terminals must no longer be greased.
- In order to prevent damage to the battery housing, battery terminals must be placed on battery posts without using force (by hand only).

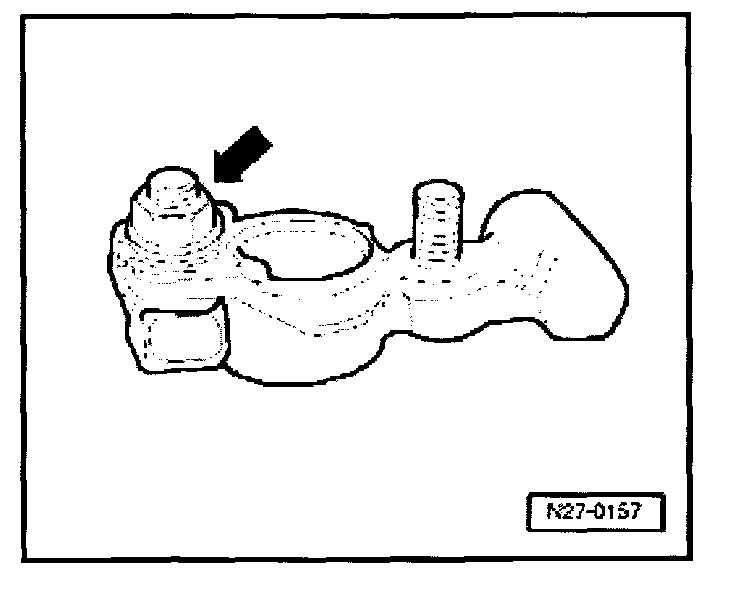

- Battery post/terminal nut -arrow- tightening torque: 6 Nm (53 in lb)
- Additional battery post/terminals, tightening torque: 6 Nm (53 in lb).
