Sender For Outlet Temperature, Floor Outlet -G192-

Sender For Outlet Temperature, Floor Outlet -G192-, Removing And Installing







Removing

- Remove driver side shelf
- Disconnect electrical connector from sender -G192-.

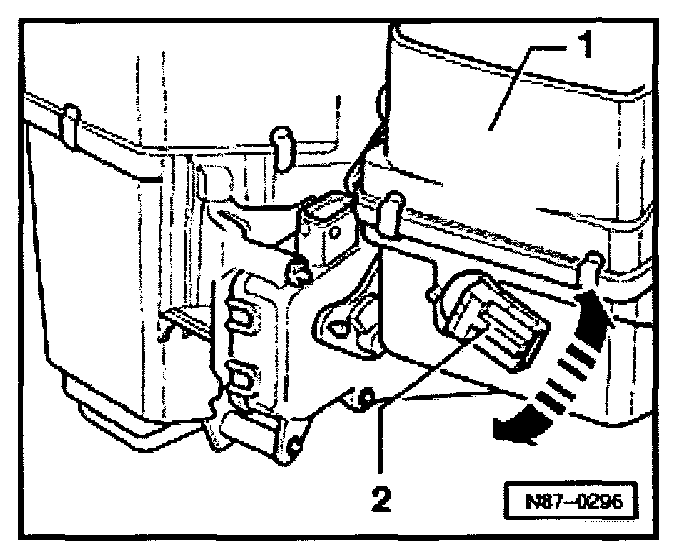

- Rotate sender -2-, 90° -arrow- and remove from housing -1-.

Installing

Lubricate rubber seal on footwell sender - G192- with oil when installing.
