Fuel Distributor With Fuel Injectors, Disassembly and Assembly

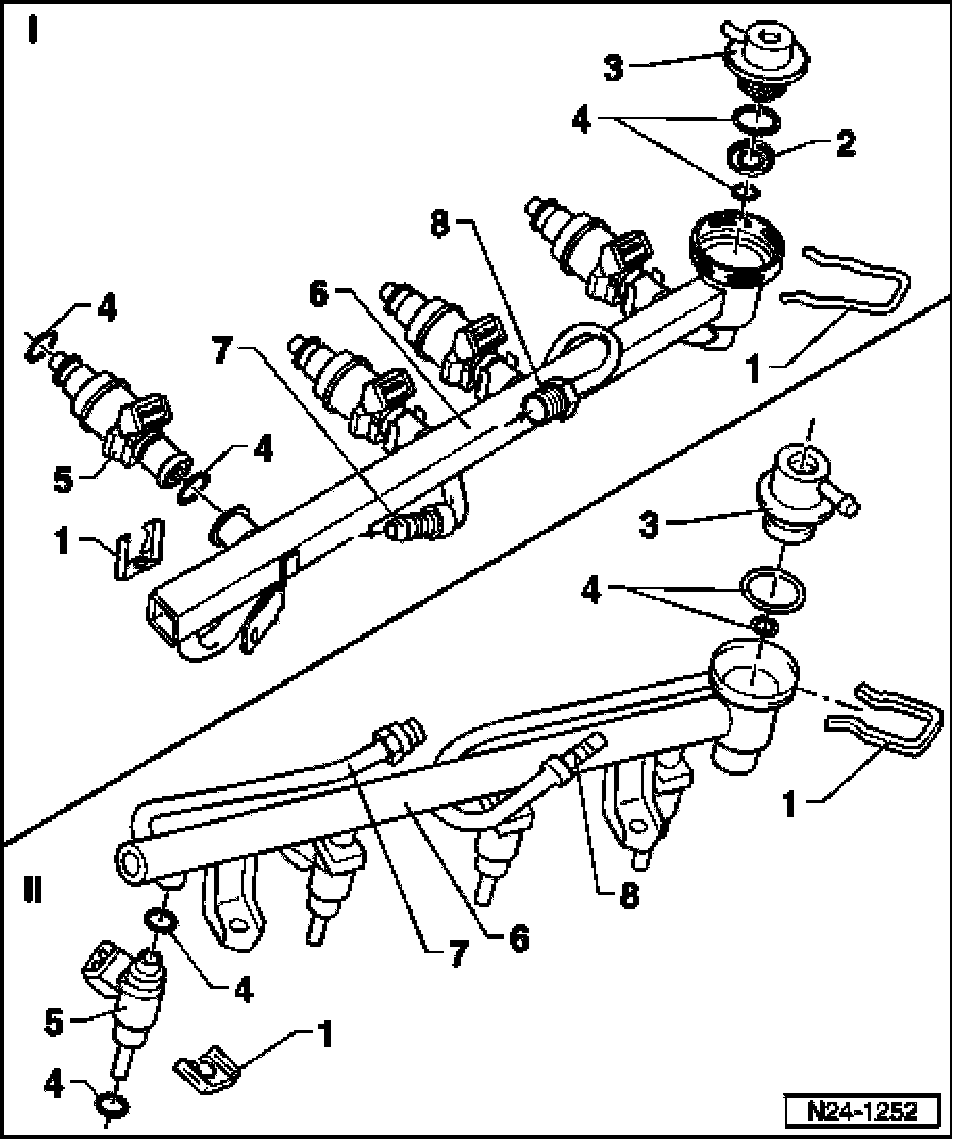

Fuel distributor with fuel injectors, disassembling and assembling (Vehicles with engine code ATW, AUG, AWM)
I - Engine code ATW
II - Engine code AUG, AWM







1 Retaining clip
- Make sure clip is correctly seated on fuel injector and fuel rail
2 Sieve
3 Fuel pressure regulator
4 O-ring
- Replace if damaged
5 Fuel injectors (Cylinder 1 Fuel Injector -N30- through Cylinder 4 Fuel Injector -N33-)*
- Resistance 12 to 17
6 Fuel distributor
- Tighten to 10 Nm
7 Connection, return line
8 Connection, supply line
